Shop HUBBELL WIRING DEVICE-KELLEMS

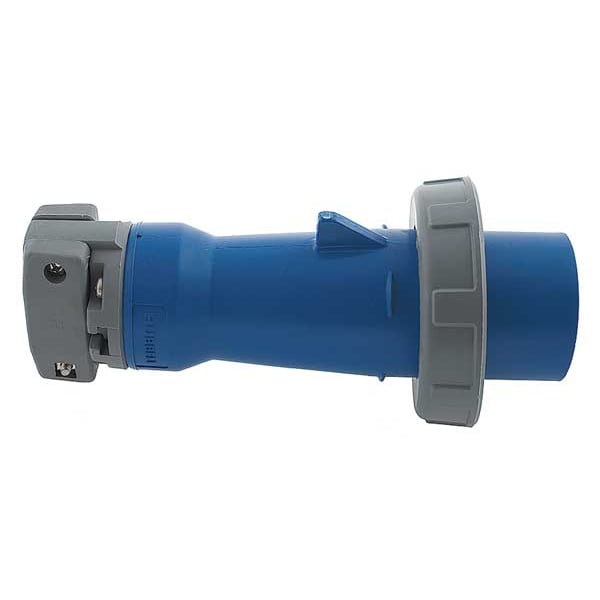

Watertight Pin & Sleeve Plug, 100 A, 250V AC, Three Phase, 3 Pole, IEC Grounding, Blue, NEMA 4X

  • Mfr # HBL4100P9W

  • Zoro # G1962511

product price:  $624.99
/ea
Free Shipping & Returns

Key Features

Number of Poles
3
Number of Wires
4
IP Rating
IP67
Wire Connection Type
Screw Terminals
Connection Orientation
Straight
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HBL4100P9W
Zoro #
G1962511
UPC #
783585404059
Country of Origin
United States

Dimensions

Overall Length
12.63 in
Maximum Wire Size
1/0 AWG
Face Diameter
3.21 in
For Minimum Cable Diameter
1.065 in
Minimum Wire Size
3 AWG
For Maximum Cable Diameter
1.065 in

Details

Item
Watertight Pin & Sleeve Plug
Current Rating
100 A
Voltage Rating
250V AC
Phase
Three
Number of Poles
3
Number of Wires
4
IP Rating
IP67
Wire Connection Type
Screw Terminals
Connection Orientation
Straight
Housing Color
Blue
Cap Type
No Cap or Cover
Standards
CSA Certified C22.2 No. 182.1, UL E146032, UL IEC 60309-1
Resistance Properties
Impact Resistant, Moisture Resistant, Watertight
Features
Gasketed Sealing Ring Provides Watertight Seal
HP
10 hp
Body Material - Pin and Sleeve
Zytel 801 Nylon
Body Material
Zytel 801 Nylon
Grounding Style
IEC
Switch Rated
No
Minimum Operating Temperature
-40 Degrees F
Housing Material
PBT
Reverse Service
No
Maximum Operating Temperature
75 Degrees C
Horsepower Rating
15 hp
Power Indicating Light
No
NEMA Enclosure Rating
4X
Shrouded
Yes
Hub Style
Standard
Series
Heavy Duty
Grounding
Grounded
UL 94 Flammability Rating
HB

Description

The HUBBELL IEC Pin and Sleeve Plug is a watertight, three-phase electrical plug rated for operation at 250V AC, up to 100 amps. Constructed with a rugged, non-metallic Zytel 801 nylon housing and featuring a gasketed sealing ring, this plug is intended for applications requiring moisture resistance and durability. It accommodates cables from 3 AWG to 1/0 AWG and provides secure connections through screw terminals.


Key Features of the HUBBELL IEC Pin and Sleeve Plug:

  • Current Rating: Rated for 100A at 250V AC, three-phase power

  • Construction: Non-metallic Zytel 801 nylon body; see manufacturer specifications for material properties

  • Watertight Design: Gasketed sealing ring; IP67 rating per manufacturer specification

  • NEMA Enclosure Rating: Type 4X enclosure protection

  • Cable Accommodation: Accepts cable diameters of 1.065 in., wire sizes from 3 AWG to 1/0 AWG

  • Operating Temperature Range: -40°C to +75°C

  • Connection Type: Screw terminal wiring; straight orientation

  • Pole/Wire Configuration: Three poles, four wires (grounded)

  • Standards Compliance: CSA Certified C22.2 No.182.1, UL E146032, UL IEC 60309-1 listed
