Shop HUBBELL WIRING DEVICE-KELLEMS

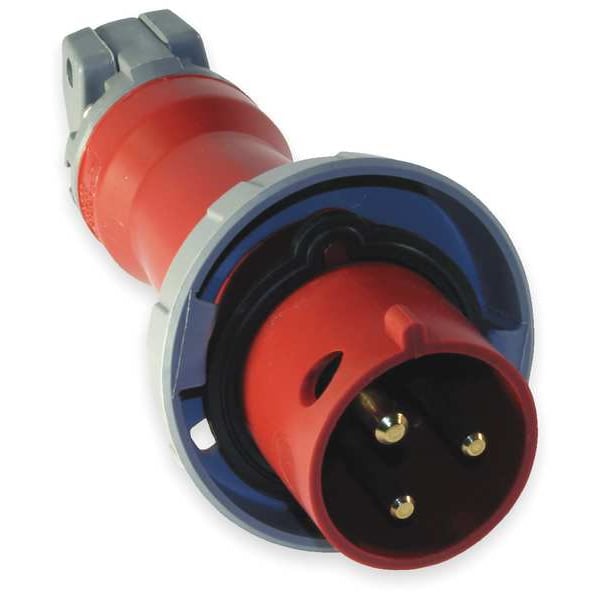

Watertight Pin & Sleeve Plug, 20 A, 480V AC, Single Phase, 2 Pole, IEC Grounding, Red

  • Mfr # HBL320P7W

  • Zoro # G2689425

product price:
$
201.15
/ea
Free Shipping & Returns

Key Features

Current Rating
20 A
Number of Poles
2
Number of Wires
3
IP Rating
IP67
Wire Connection Type
Screw Terminals
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
HBL320P7W
Zoro #
G2689425
UPC #
783585403410
Country of Origin
United States
Item
Watertight Pin & Sleeve Plug
Current Rating
20 A
Voltage Rating
480V AC
Phase
Single
Number of Poles
2
Number of Wires
3
IP Rating
IP67
Wire Connection Type
Screw Terminals
Connection Orientation
Straight
Housing Color
Red
Cap Type
No Cap or Cover
Standards
CSA Certified LR280C, IEC 60309-1, IEC 60309-2, UL 1682, UL 1686C2
Resistance Properties
Impact Resistant, Moisture Resistant, Watertight
Features
Gasketed Sealing Ring Provides Watertight Seal, Raised Collar Surrounds Each Phase Pin, Solid One-Piece Pins Machined from Solid Brass
Body Material - Pin and Sleeve
Zytel 801 Nylon
Body Material
Zytel 801 Nylon
Grounding Style
IEC
Switch Rated
No
Material
Composite
Application
High Ampacity Connections
Power Indicating Light
No
Housing Material
PBT
Reverse Service
No
Horsepower Rating
5 hp
Minimum Operating Temperature
-40 Degrees F
Shrouded
Yes
NEMA Enclosure Rating
Not Rated
Maximum Operating Temperature
75 Degrees C
Hub Style
Standard
Cord Type
All Portable
Industry Standard(s)
CSA Certified File LR280C UL Classified to IEC 60309-1 IEC 60309-2 UL Standard UL1682 and UL 1686C2
OEM Brand Name
Hubbell Wiring Device-Kellems
Series
Heavy Duty
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - 3000V AC Electrical - Max. Working Voltage - 600V RMS Environmental - Flammability - HB or better per UL 94 or CSA C22.2 No. 0.17 Environmental - Ingress Protection - IP67 Suitability Environmental - Moisture Resistance - Watertight per IEC 60309-1 Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum - 40°C w/o impact Mechanical - Impact Resistance - Per CSA C22.2 No.182.1 /UL1682 Mechanical - Product Identification - Identification and ratings are a permanent part of the device housing Mechanical - Terminal Identification - Terminals identified in accordance with North American and IEC conventions
Style
Standard Service
Environmental Conditions
Watertight
Material - Mounting Hardware
Cord Mounted
Connection Type
Screw Terminals
Grounding
Grounded
UL 94 Flammability Rating
HB

Description

The HUBBELL IEC Pin and Sleeve Plug is an electrical connector rated for 20A at 480V AC (single phase) with IP67 ingress protection. This plug features a 2-pole, 3-wire configuration, rated for 20A at 480V AC single-phase operation. Its rugged construction includes a non-metallic Zytel 801 nylon housing and solid brass pins, providing resistance to impact, moisture, and electrical tracking. The device uses pressure terminal screws for wire connection and accommodates cord diameters from 0.36 to 0.78 inches.


Key Features of the HUBBELL IEC Pin and Sleeve Plug:

  • Current/Voltage Rating: Rated for 20A at 480V AC (single phase)

  • Watertight Construction: Gasketed sealing ring with IP67 ingress protection

  • Material: Non-metallic Zytel 801 nylon body; composite construction

  • Contact Design: Solid one-piece brass pins with raised collar around each phase pin

  • Cord Mounting: Accommodates cord diameters from 0.36 to 0.78 inches; compatible with #14 AWG to #10 AWG cords

  • Operating Temperature Range: -40°C to +75°C continuous use

  • Wire Connection Type: Screw terminals (pressure terminal screws)

  • Grounding Style: IEC grounded design

  • Certifications/Standards: CSA Certified LR280C; UL Classified to IEC 60309-1/-2; UL1682; UL1686C2
