  11. Watertight Pin & Sleeve Plug, 60 A, 250V AC, Three Phase, 3 Pole, IEC Grounding, Blue

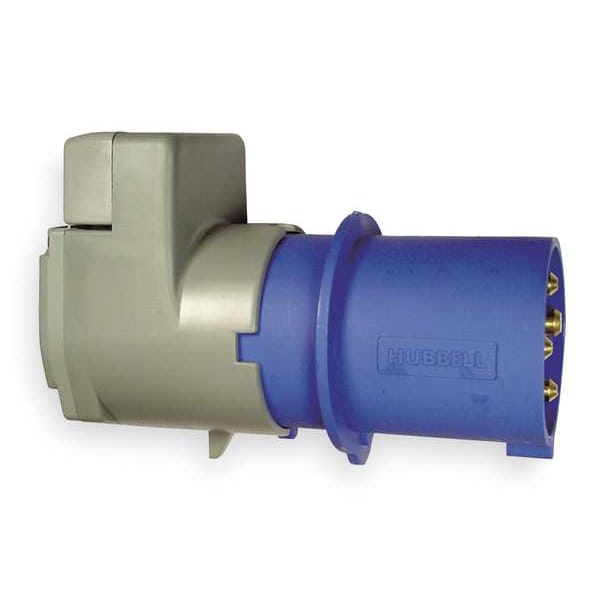

Hubbell Wiring Device-Kellems Watertight Pin & Sleeve Plug, 60 A, 250V AC, Three Phase, 3 Pole, IEC Grounding, Blue A460P9 - main

Watertight Pin & Sleeve Plug, 60 A, 250V AC, Three Phase, 3 Pole, IEC Grounding, Blue

  • Mfr # A460P9

  • Zoro # G3057232

product price: $344.25
/ea
Free Shipping & Returns

Key Features

Current Rating
60 A
Voltage Rating
250V AC
Phase
Three
Number of Poles
3
Number of Wires
4
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
A460P9
Zoro #
G3057232
UPC #
783585507804
Country of Origin
United States

Dimensions

Minimum Wire Size
8 AWG
Overall Length
7 in
For Minimum Cable Diameter
0.83 in
Maximum Wire Size
4 AWG
Outside Diameter
3.31 in
Display Size
Standard Sized
Wire Size
#4 AWG
For Maximum Cable Diameter
0.83 in

Details

Item
Watertight Pin & Sleeve Plug
Current Rating
60 A
Voltage Rating
250V AC
Phase
Three
Number of Poles
3
Number of Wires
4
IP Rating
IP22
Wire Connection Type
Screw Terminals
Connection Orientation
Straight
Housing Color
Blue
Cap Type
No Cap or Cover
Standards
CSA C22.2, UL 1682
Resistance Properties
Impact Resistant, Moisture Resistant, Watertight
Body Material - Pin and Sleeve
Zytel 101 Nylon
Grounding Style
IEC
HP
15 hp
Features
Integrated Cord Grip Limits Strain on Terminals, Recessed Pins are Protected from Impact and Abuse
Body Material
Zytel 101 Nylon
Switch Rated
No
Reverse Service
No
NEMA Enclosure Rating
Not Rated
Housing Material
Non-Metallic
For Location
Indoor
Shrouded
Yes
Power Indicating Light
No
Minimum Operating Temperature
-40 Degrees F
Maximum Operating Temperature
75 Degrees C
Horsepower Rating
15 hp
Material
Composite
Style
Standard Service
Cord Type
All Portable
OEM Brand Name
Hubbell Wiring Device-Kellems
Performance
Electrical - Current Interrupting - Certified for current interruption at full rated current Electrical - Dielectric Voltage - Withstands 3,000V AC Electrical - Max Working Voltage - 250V RMS Environmental - Flammability - HB or better per UL 94 or CSA C22.2 No. 0.17 Environmental - Ingress Protection - IP22 Suitability Environmental - Operating Temperatures - Max. Continuous +75°C Min. -40°C w/o impact Mechanical - Impact Resistance - Per CSA C22.2 No. 182.1 / UL1682 Mechanical - Product Identification - Ratings are a permanent part of the device housing Mechanical - Terminal Identification - Terminals identified in accordance with North American convention
Material - Mounting Hardware
Cord Mounted
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Series
Low Profile
Application
High Ampacity Connections
Compatible with Series
Low Profile Advantage
Connection Type
Screw Terminals

Description

Hubbell’s Low Profile Pin and Sleeve devices were designed to save space without sacrificing pin and sleeve strength, safety and convenience. The small compact design of these plugs is ideal for indoor applications where space is at a premium. These devices are fully interchangeable with standard IEC 60309 pin and sleeve. They are a perfect fit for tight situations frequently found in hotels, restaurants, convention centers, warehouses, assembly benches and offices.
• Solid one-piece pins for reliable electrical contact
• Recessed pins are protected from impact and abuse
• Integrated Cord Grip limits strain on terminals
