  11. Watertight Pin & Sleeve Plug, 60 A, 347/600V AC, Three Phase, 4 Pole, IEC Grounding, Black

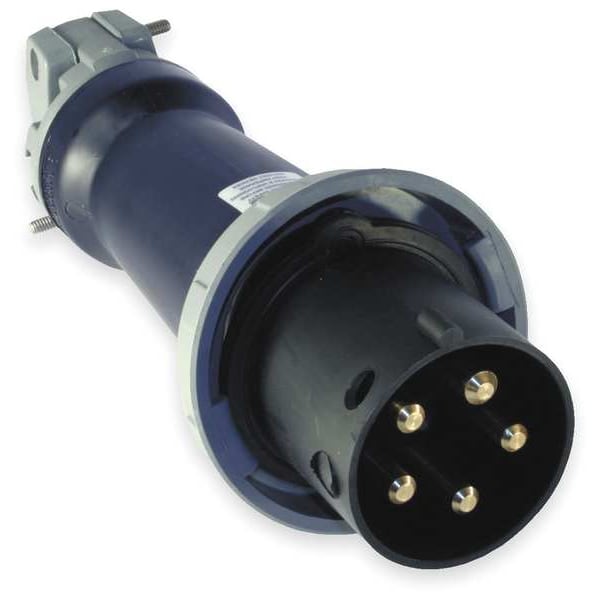

Hubbell Wiring Device-Kellems Watertight Pin & Sleeve Plug, 60 A, 347/600V AC, Three Phase, 4 Pole, IEC Grounding, Black HBL560P5W - main

Watertight Pin & Sleeve Plug, 60 A, 347/600V AC, Three Phase, 4 Pole, IEC Grounding, Black

  • Mfr # HBL560P5W

  • Zoro # G0853772

product price: $515.70
/ea
Free Shipping & Returns

Key Features

Number of Poles
4
Number of Wires
5
IP Rating
IP67
Wire Connection Type
Screw Terminals
Connection Orientation
Straight
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL560P5W
Zoro #
G0853772
UPC #
783585405681
Country of Origin
United States

Dimensions

Overall Length
10.14 in
For Maximum Cable Diameter
1.45 in
Face Diameter
2.72 in
Minimum Wire Size
8 AWG
Maximum Wire Size
2 AWG
For Minimum Cable Diameter
0.50 in
Display Size
Standard Sized
Wire Size
#8 AWG to #2 AWG

Details

Item
Watertight Pin & Sleeve Plug
Current Rating
60 A
Voltage Rating
347/600V AC
Phase
Three
Number of Poles
4
Number of Wires
5
IP Rating
IP67
Wire Connection Type
Screw Terminals
Connection Orientation
Straight
Housing Color
Black
Cap Type
No Cap or Cover
Standards
CSA Standard C22.2 No. 182.1, UL Classified to IEC60309-1, UL Listed, File E146032
Resistance Properties
Impact Resistant, Moisture Resistant, Watertight
Body Material
Zytel 801 Nylon
Body Material - Pin and Sleeve
Zytel 801 Nylon
Grounding Style
IEC
Features
Gasketed Sealing Ring Provides Watertight Seal
HP
15 hp
Switch Rated
No
Application
High Ampacity Connections
Material
Composite
NEMA Enclosure Rating
Not Rated
Shrouded
Yes
Minimum Operating Temperature
-40 Degrees F
Horsepower Rating
25 hp
Housing Material
Non-Metallic
Maximum Operating Temperature
75 Degrees C
Power Indicating Light
No
Reverse Service
No
Hub Style
Standard
Series
HBL Heavy Duty
Industry Standard(s)
CSA Standard C22.2 No. 182.1 UL Classified to IEC60309-1 UL Listed, File E146032
Cord Type
All Portable
Material - Mounting Hardware
Cord Mounted
OEM Brand Name
Hubbell Wiring Device-Kellems
Environmental Conditions
Watertight
Style
Standard Service
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 3,000V AC Min Electrical - Max. Working Voltage - 600V AC RMS Environmental - Flammability - HB or Better per UL 94 or CSA C22.2 No. 0.17 Environmental - Ingress Protection - IP67 Suitability Environmental - Moisture Resistance - Watertight per IEC 60309-1 Environmental - Operating Temperature - Maximum Continuous 75°C Minimum - 40°C w/o impact Mechanical - Impact Resistance - Per CSA C22.2 No. 182.1 / UL1682 Mechanical - Product Identification - Identification and ratings are a permanent part of the device housing. Mechanical - Terminal Identification - Terminals identified in accordance with North American and IEC conventions
Connection Type
Screw Terminals

Description

The HUBBELL IEC Pin and Sleeve Plug is a rated for use in industrial environments requiring up to 60A and 600V AC. Rated for 60A and up to 600V AC, this plug includes a Zytel 801 nylon housing with a gasketed sealing ring for IP67 ingress protection. It accommodates three-phase (3Y) power with four poles and five wires, supporting wire sizes from #8 AWG to #2 AWG.


Key Features of the HUBBELL IEC Pin and Sleeve Plug:

  • Current/Voltage Rating: Rated for 60 A at 347/600V AC

  • Body Material: Constructed from impact-resistant Zytel 801 nylon composite

  • Watertight Design: Gasketed sealing ring provides IP67 ingress protection

  • Cord Type Compatibility: Compatible with portable cords within specified cable diameter range; cord mounted design supports cable diameters from 0.5 in to 1.45 in

  • Wire Connection: Pressure terminal screws accommodate #8 AWG to #2 AWG conductors

  • Operating Temperature Range: -40°C to +75°C (non-impact conditions)

  • Standards Compliance: CSA Standard C22.2 No.182.1, UL Classified to IEC60309-1, UL Listed (File E146032)

  • Phase/Wiring Configuration: Three-phase Y configuration; four poles, five wires; grounded per IEC conventions

  • Horsepower Rating: Rated for use with motors up to 25 hp
