  6. Watertight Pin & Sleeve Receptacle, 100 A, 125/250V AC, Three Phase, 3 Pole, IEC Grounding, Orange

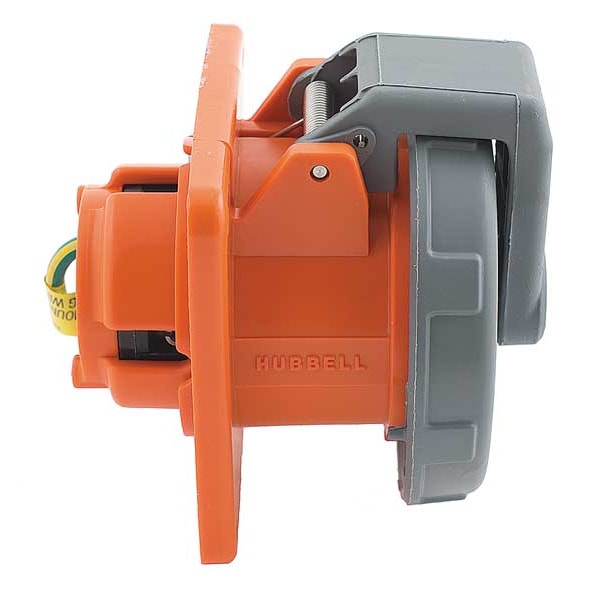

Hubbell Wiring Device-Kellems Watertight Pin & Sleeve Receptacle, 100 A, 125/250V AC, Three Phase, 3 Pole, IEC Grounding, Orange HBL4100R12W - main

Watertight Pin & Sleeve Receptacle, 100 A, 125/250V AC, Three Phase, 3 Pole, IEC Grounding, Orange

  • Mfr # HBL4100R12W

  • Zoro # G1604197

product price:  $538.99
/ea
Free Shipping & Returns

Key Features

Phase
Three
Number of Poles
3
Number of Wires
4
IP Rating
IP67
NEMA Enclosure Rating
4X
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
HBL4100R12W
Zoro #
G1604197
UPC #
783585404080
Country of Origin
United States

Dimensions

Face Diameter
4.71 in
Minimum Wire Size
3 AWG
Maximum Wire Size
1/0 AWG
Cord Size
3 to 1/0 AWG

Details

Item
Watertight Pin & Sleeve Receptacle
Current Rating
100 A
Voltage Rating
125/250V AC
Phase
Three
Number of Poles
3
Number of Wires
4
IP Rating
IP67
NEMA Enclosure Rating
4X
Wire Connection Type
Screw Terminals
Housing Color
Orange
Cap Type
Spring-Loaded Cap
Standards
CSA Certified C22.2 No. 0.17, CSA Certified C22.2 No. 182.1, IEC 60309-1, UL 1682, UL 94
Resistance Properties
Impact Resistant, Moisture Resistant, Watertight
Grounding Style
IEC
Body Material - Pin and Sleeve
Zytel 101 Nylon
Features
Color Coded
Body Material
Zytel 101 Nylon
Switch Rated
No
Power Indicating Light
No
Market
Industrial
Housing Material Grade
Zytel 101
Horsepower Rating
10 hp
Maximum Operating Temperature
75 Degrees C
Flange Type
Flanged
Housing Material
Thermoplastic
Reverse Service
No
Shrouded
Yes
Number of Gangs
1
Connection Orientation
Straight
Minimum Operating Temperature
-40 Degrees C
Gasket Material
Neoprene
Temp. Rise
30°C
Flange Material
Zytel 101 Nylon
Product Type
Watertight IEC Device
Screw Material
300 Stainless Steel
Service
Standard
Flammability
UL 94 HB or Better
Weight
3.9 lb
Retainer Material
High-Impact Thermoset
Dielectric Strength
3000V AC
Operating Temp.
-40 to 75°C

Description

The HUBBELL IEC Pin and Sleeve Receptacle is a suitable for industrial applications, rated for 100A and 125/250V AC. This receptacle features a rugged, one-piece Zytel 101 nylon housing with a flanged design and straight connection orientation. It features materials rated for impact, moisture, and temperature exposure as specified.


Key Features of the HUBBELL IEC Pin and Sleeve Receptacle:

  • Current/Voltage Rating: Rated for 100A at 125/250V AC

  • Body Material: Zytel 101 nylon

  • IP67 rating with neoprene gasket material

  • NEMA Enclosure Rating: Type 4X

  • Cord Size Compatibility: Accepts wire sizes from 3 AWG to 1/0 AWG using screw terminals

  • Operating Temperature Range: -40°C to +75°C maximum operating temperature

  • Number of Poles/Wires: Three poles, four wires; grounded per IEC style

  • Flange Type & Cap: Flanged body with spring-loaded self-closing cap

  • Standards Compliance: Meets UL 1682, UL 94 HB flammability rating, CSA C22.2 No.182.1 & No.0.17, IEC 60309-1 standards
