  6. Watertight Pin & Sleeve Receptacle, 60 A, 250V AC, Three Phase, 3 Pole, IEC Grounding, Blue

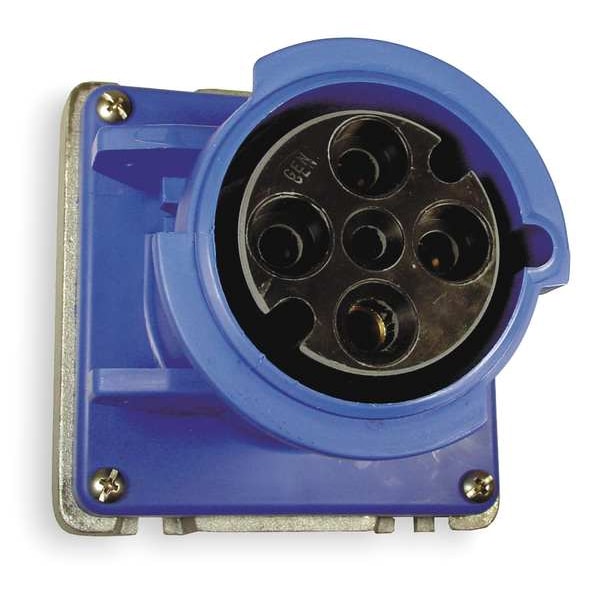

Hubbell Wiring Device-Kellems Watertight Pin & Sleeve Receptacle, 60 A, 250V AC, Three Phase, 3 Pole, IEC Grounding, Blue A460R9 - main

Watertight Pin & Sleeve Receptacle, 60 A, 250V AC, Three Phase, 3 Pole, IEC Grounding, Blue

  • Mfr # A460R9

  • Zoro # G1983563

product price:  $325.35
/ea
Free Shipping & Returns

Key Features

Voltage Rating
250V AC
Phase
Three
Number of Poles
3
Number of Wires
4
IP Rating
IP22
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
A460R9
Zoro #
G1983563
UPC #
783585507859
Country of Origin
United States

Dimensions

Maximum Wire Size
2 AWG
Minimum Wire Size
8 AWG
Wire Size
6 to 4 AWG
Display Size
Standard Sized Product

Details

Item
Watertight Pin & Sleeve Receptacle
Current Rating
60 A
Voltage Rating
250V AC
Phase
Three
Number of Poles
3
Number of Wires
4
IP Rating
IP22
NEMA Enclosure Rating
Not Rated
Wire Connection Type
Screw Terminals
Housing Color
Blue
Cap Type
Spring-Loaded Cap
Standards
CSA Certified C22.2 No. 0.17, CSA Certified C22.2 No. 182.1, IEC, UL 1682, UL 94
Resistance Properties
Corrosion Resistant, Impact Resistant, Watertight
Switch Rated
No
Grounding Style
IEC
Features
Color Coded, Split Sleeves with Self-Adjusting Stainless Steel Springs
HP
15 hp
Body Material - Pin and Sleeve
Zytel 101 Nylon
Body Material
Zytel 101 Nylon
Receptacle Type
IEC
Material
Thermoplastic
Number of Gangs
1
Connection Orientation
Straight
Power Indicating Light
No
Market
Industrial
Housing Material Grade
Zytel 101
Shrouded
Yes
Maximum Operating Temperature
75 Degrees C
Reverse Service
No
Minimum Operating Temperature
-40 Degrees C
Flange Type
Flanged
Horsepower Rating
15 hp
Housing Material
Thermoplastic
Operating Temp. Range
-40° C to 75° C
Application
High Ampacity Watertight Connections
Environmental Conditions
Watertight
Material - Mounting Hardware
Screw Mounting
Series
Low Profile
Style
Standard Service
Wattage
15000
Performance
Electrical - Current Interrupting - Certified for current interruption at full rated current Electrical - Dielectric Voltage - Withstands 3,000V AC Electrical - Max Working Voltage - 250V RMS Environmental - Flammability - HB or better per UL 94 or CSA C22.2 No. 0.17 Environmental - Ingress Protection - IP22 Suitability Environmental - Operating Temperatures - Max. Continuous +75°C Min. -40°C w/o impact Mechanical - Impact Resistance - Per CSA C22.2 No. 182.1 / UL1682 Mechanical - Product Identification - Ratings are a permanent part of the device housing Mechanical - Terminal Identification - Terminals identified in accordance with North American convention
OEM Brand Name
Hubbell Wiring Device-Kellems
Connection Type
Screw Terminals

Description

Hubbell’s Low Profile Pin and Sleeve devices were designed to save space without sacrificing pin and sleeve strength, safety and convenience. The small compact design of these plugs is ideal for indoor applications where space is at a premium. These devices are fully interchangeable with standard IEC 60309 pin and sleeve. They are a perfect fit for tight situations frequently found in hotels, restaurants, convention centers, warehouses, assembly benches and offices.
• Split sleeves with self-adjusting stainless steel springs
• Color coding for easy identification of mating devices
• Stainless steel terminal screws resist rust and corrosion
