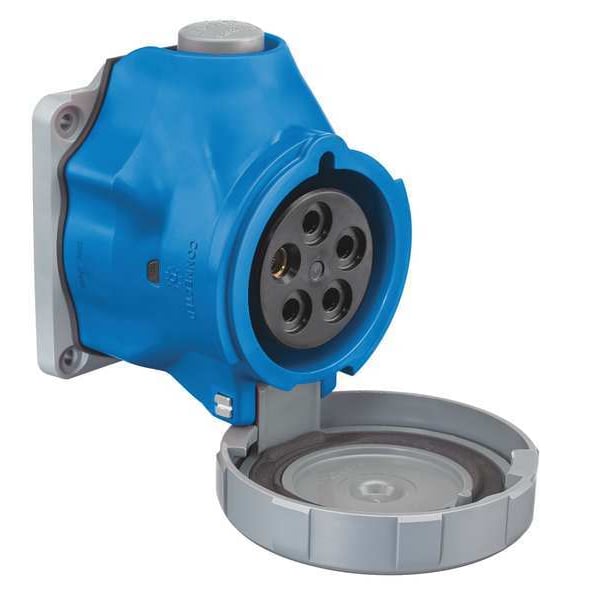

Watertight Pin & Sleeve Receptacle, 60/63 A, 120/208V AC, Three Phase, 4 Pole, IEC Grounding, Blue
Mfr # HBLS560R9W
Zoro # G0977370
Key Features
Specifications
Product Information
Dimensions
Description
The HUBBELL AdvantageTM Series Pin and Sleeve Receptacle is a switch-rated device intended for industrial electrical connections. It operates at 120/208V AC with a current rating of 60/63 A and supports three-phase power. The receptacle features a compact design compatible with IEC 60309-2 pin and sleeve devices, making it suitable for integration into existing systems. Its robust housing is constructed from Valox 357 polybutylene terephthalate (PBT), offering resistance to impact, corrosion, and moisture.
Key Features of the HUBBELL AdvantageTM Series Pin & Sleeve Receptacle:
- Voltage Rating: 120/208V AC; Current Rating: 60/63 A
- Switch-Rated: Rated as a disconnecting means for motor circuits and branch circuits
- Compatibility: Mates with existing IEC 60309-2 pin and sleeve devices
- NEMA Enclosure Rating: Rated NEMA 4X; IP69K rated for watertight performance
- Material Construction: Valox 357 PBT housing
- Operating Temperature Range: -40°C to +75°C
- Power Indication: Equipped with power-indicating LED lights
- Screw Terminal Connections; Maximum Wire Size: 2 AWG; Minimum Wire Size: 8 AWG
- No cap or cover included; Flanged type mounting
