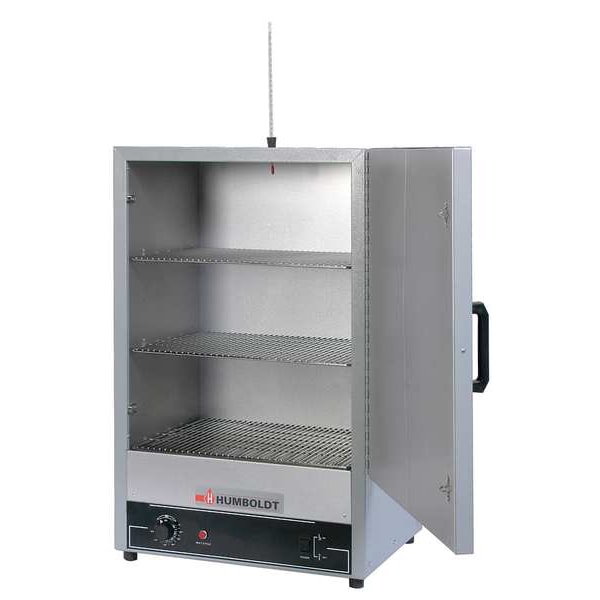

Laboratory Oven, 3.0 cu. Ft, 230V, 60 Hz

  • Mfr # 5DNX9

  • Zoro # G2349265


product price: $1,859.99
/ea
Item requires special delivery charges. A $75.00 per item surcharge will be applied.

Key Features

Overall Depth
31 1/2 in
Overall Height
16 1/4 in
Overall Width
20 in
Convection Type
Gravity
Capacity
3 cu ft
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5DNX9
Zoro #
G2349265
UPC #
-
Country of Origin
United States

Dimensions

Overall Depth
31 1/2 in
Overall Height
16 1/4 in
Overall Width
20 in
Overall Dimensions
20 x 30 x 16"
Inside Usable Dimensions
18 x 21 x 14"
Manufacturers Warranty Length
1 yr
Chamber Depth
14 in
Chamber Height
21.8 in
Chamber Width
18 in
Interior Height
14 in
Interior Width
18 in
Interior Depth
21 3/4 in

Details

Item
Laboratory Oven Convection
Convection Type
Gravity
Capacity
3 cu ft
Volume
3 cu ft
Wattage
1,600 W
Voltage
230V AC
Features
Rubber Feet, Top Mounted Thermometer
Standards
ASTM C128, ASTM C186
Programmable
Yes
Temp. Range
Ambient to 225 Degrees C
Temp. Range (F)
0 Degrees to 450 Degrees
Door Material
Steel
Hz
50/60
Capacity (ML)
85,000
Special Features
Rubber Feet, Top Mounted Thermometer
Preheat Time
6 to 23 min
Power Requirement
230V, 50/60 Hz
Includes
6 ft Power Cord
Housing Material
Steel
Temp. Recovery Time
6 to 9 min
Shelf Capacity
50 lb
Temp. Accuracy
+/-1
Temp. Uniformity
+/-3 Degrees C @ 150 Degrees C, +/-6 Degrees C @ 300 Degrees C
Temp. Range (C)
0 Degrees to 232 Degrees
Chamber Material
Aluminized Steel
Number of Shelves
2
Number of Doors
1
Watts
1,600 W
Power Consumption
1600 Watts Minimum
Capacity (Cu.-Ft.)
3
Temperature Setting - Maximum
232 Degrees C
Current
6 A
Interior Material
Aluminized Steel
Temperature Setting - Minimum
-18 Degrees C
Maximum Load Capacity per Shelf
50 lb
Temperature Accuracy Tolerance
+/-1%
Control Type
Dial
Temperature Uniformity
+/-3 Degrees C @ 150 Degrees C, +/-6 Degrees C @ 300 Degrees C
Frequency
50/60 Hz
Number of Shelves Included
2
Maximum Number of Shelves
22
Display Type
Dial
Color
Silver
Shelf Adjustability
Adjustable
Housing Finish
Powder Coated
Product Type
Lab Oven

Description

Laboratory Oven Convection, Convection Type Gravity, Temp. Range (C) 0 Degrees to 232 Degrees , Temp. Range (F) 0 Degrees to 450 Degrees , Overall Height 16 1/4 in, Overall Width 20 in, Overall Depth 31 1/2 in, Temp. Accuracy +/-1, Chamber Height 21.8 in, Chamber Width 18 in, Chamber Depth 14 in, Hz 50/60, Voltage 230V AC, Watts 1,600 W, Capacity (Cu.-Ft.) 3, Capacity (ML) 85,000, Programmable Yes, Temp. Recovery Time 6 to 9 min
