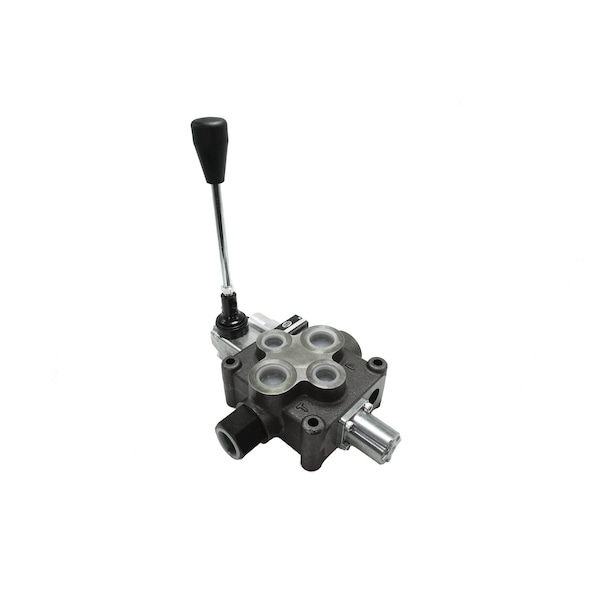

Directional Control Valve , 32 GPM, 1 Spool, 228935
- Mfr # 228935
- Zoro # G015227024
product price:Â
$
324.99
/ea
Free Shipping & Returns
Key Features
Valve Type
Control
Body Material
Cast Iron
Series
32
Number of Positions
Three Positions
Number of Ways
Four-Way
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 228935
- Zoro #
- G015227024
- UPC #
- 615986041093
- Country of Origin
- Taiwan, Province of China
Dimensions
- Work Connection Size
- #12
- Tank Connection Size
- #16
- Pressure Connection Size
- #16
Details
- Item
- Hydraulic Directional Control Valve
- Valve Type
- Control
- Body Material
- Cast Iron
- Series
- 32
- Number of Positions
- Three Positions
- Number of Ways
- Four-Way
- Spool Action
- Spring Center
- Relief Valve Pressure Setting - Minimum
- 1,800 psi
- Operating Temperature - Maximum
- 176 Degrees F
- Supply Pressure - Maximum
- 2,500 psi
- Valve Control
- Directional Control
- Relief Valve Pressure Setting - Maximum
- 3,600 psi
- Port Connections
- Inlet, Outlet, Work
- Work Connection Type
- SAE O-Ring Boss
- Number of Spools
- 1
- Flow Rate - Maximum
- 32 gpm
- Pressure Setting - Maximum
- 2,500 psi
- Center Position
- Motor Center
- Tank Connection Type
- SAE O-Ring Boss
- Pressure Connection Type
- SAE O-Ring Boss
Description
Product Features: 21 GPM rating, mono-block valve with cast iron construction, check valve to prevent reverse flow, stock adjustable relief from 1800-3600 PSI, relief cartridges available for 1150-2300 PSI or 2900-4600 PSI operation, power beyond and closed center plugs available, optional relief cartridges, handles, and plugs available in accessories.
