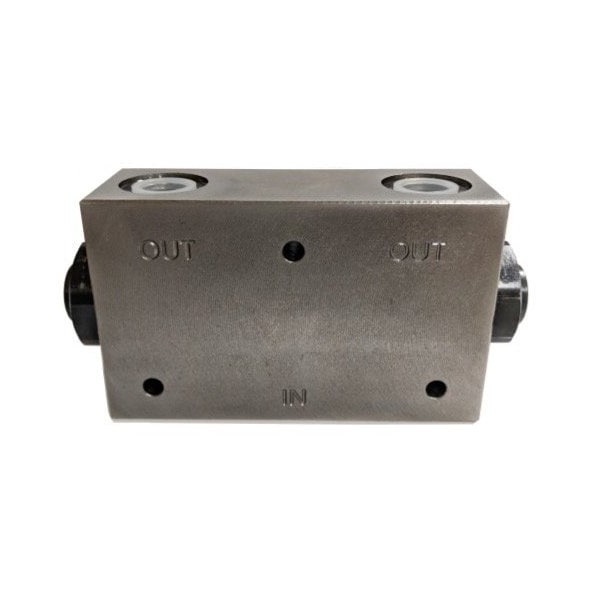

Pilot Operated Lock Valve - 30 GPM, 3000 PSI, SAE 8 Ports
Mfr # 220801
Zoro # G215289686
product price:Â
$
133.99
/ea
Free Shipping & Returns
Key Features
Valve Type
Pilot
Body Material
Steel
Overall Height
81 mm
Overall Length
162 mm
Overall Width
46 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 220801
- Zoro #
- G215289686
- UPC #
- 615986065358
- Country of Origin
- Taiwan, Province of China
Dimensions
- Overall Height
- 81 mm
- Overall Length
- 162 mm
- Overall Width
- 46 mm
- Port-to-Port Length
- 98.6 mm
- Outlet Connection Size
- #8
- Inlet Connection Size
- #8
- Wire Rope Length
- 162 mm
- Length
- 162 mm
Details
- Item
- Valve Lock Pilot
- Valve Type
- Pilot
- Body Material
- Steel
- Reverse Free Flow
- No Reverse Free Flow
- Actuation Mechanism
- Pressure
- Flow Rate - Maximum
- 30 gpm
- For Media
- Oil
- Pressure - Maximum
- 3,000 psi
- Valve Control
- Directional Control
- Return Mechanism
- Pressure
- Pilot Connection Type
- SAE 45 Degrees Flare
- Port Connections
- Pilot
- Inlet Connection Type
- SAE O-Ring Boss
- Outlet Connection Type
- SAE O-Ring Boss
Description
Used to lock a cylinder in place when a directional control valve is in the neutral position. In operation, pressurized oil flow is directed through one of the cylinder ports. The pressure from the valve port will shift the pilot spool opening of the corresponding check valve, allowing oil to return through the opposite check valve. This valve uses a hardened steel seat and ball and should not be used in applications requiring zero leakage. Includes: Two valve ports and two cylinder ports, Double pilot-operated check valve to prevent reverse flow, 4:1 Ratio, 30 GPM, >3000 PSI, SAE #8 Ports, Steel body
- Two valve ports and two cylinder ports
- Double pilot-operated check valve to prevent reverse flow
- 30 GPM
- 3000 PSI
- SAE #8 Ports
