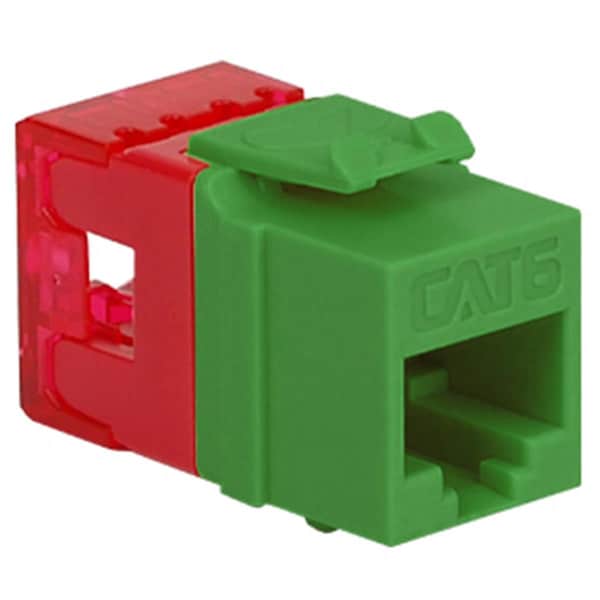

Cat 6 High Density Modular Connector Green

Feature CAT 6 rated connectors provide excellent performance for data networks requiring maximum speed and bandwidth. PCB technology provides maximum performance and superior signal quality. Enhanced crosstalk cancellation reduces return loss and improves performance by rejecting noise and unwanted signals. Exceeds ANSI/TIA-568-C.2 Category 6 connecting hardware requirements. Designed with rear split back 110 IDC reducing termination time. Terminate with 110 punch down tool ICACSPDT00. Reduced rear footprint allows for greater connectivity density and provides for more port configurations in a smaller area. Includes an integrated TIA-568A/B color wiring diagram. Backwards compatible to all lower rated category components. Compatible with all ICC configurable faceplate, inserts, surface mount boxes, and blank patch panels. Compatible with all ICC furniture faceplate, Elite bezels, and Elite surface mount boxes. Used with Category 6 patch cords. Installation instructions included. UL listed. Color - Green. Cat 6 Module Electrical Current Rating: 1.5 Amps. Insulation Resistance: 500 Mohms Min. Contact Resistance: 20 Mohms Max. Dc Resistance: 0.1 Ohm Max. Transmission Performance Exceeds Category 6. Connecting Hardware Requirements Specified In. Ansi/tia-568-c.2 When Used With Compatible. Horizontal Cable.
