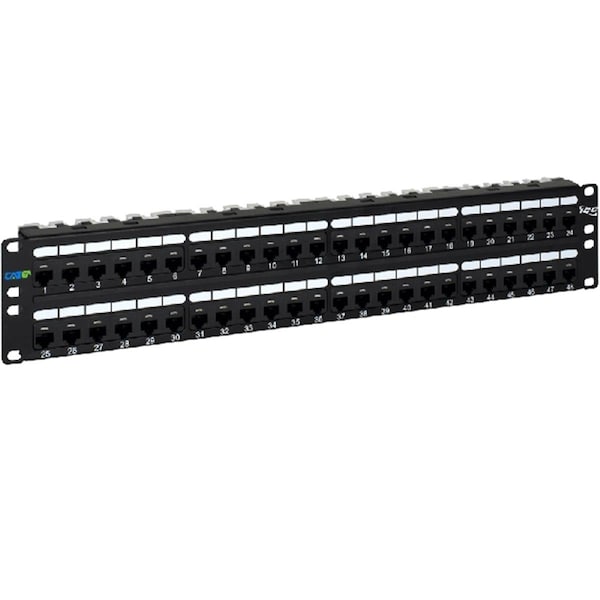

-ICMPP0486B 2 RMS CAT 6A 48 Port Patch Panel

ICC’s new CAT 6A 2U 48-ports 110-type UTP 10G Patch Panel is component compliant to ANSI/TIA CAT 6A connecting hardware requirements. The vertical 110-type insulation displacement connectors IDCs is designed to provide optimum permanent and channel link performance and reduces potential Alien Crosstalk ANXT. Jacks are grouped in six-port modules for quick administration and easy labeling. The high density design occupies 2 rack mount space RMS and measures 19 x 3.50 . Features -Vertical 110-Type IDC connections reduces potential Alien Crosstalk ANXT -Enhanced crosstalk cancellation and reduced loss for high bandwidth network requirements -Exceeds ANSI/TIA-568 CAT 6A 10G connecting hardware Component Rating requirements -110-Type IDC termination help reduce installation time and improve wire retention -50 micro inch gold plating on all modular contacts to protect from corrosion -2 rack mount spaces RMS Mounts on industry standard 19 wide racks or equipment -T568A or T568B wiring schemes; not compatible with 110-type patch plug -UL Listed Specifications - Weight: 3 lbs
