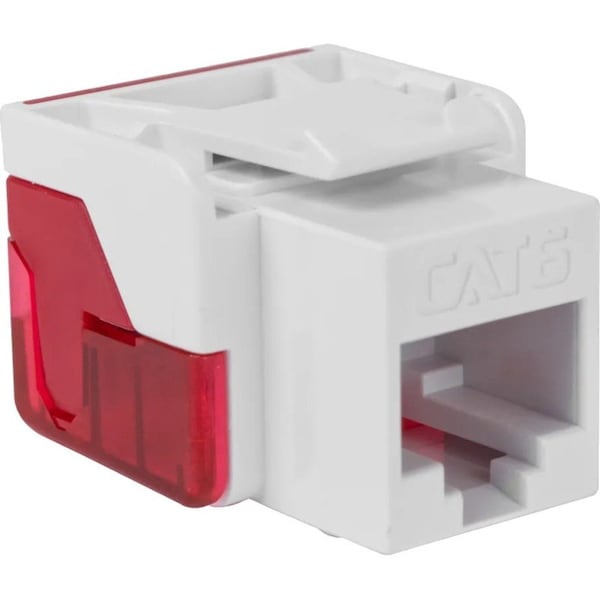

MODULE, CAT 6, EZ, 400 PK, No JackEZ, WH
- Mfr # IC107L6RWH
- Zoro # G709851092
product price:Â
$
1,452.99
/ea
Free Shipping & Returns
Key Features
Color
White
Insulation Resistance
500 mohms min
Plug Insertion Life
750 cycles min
DC Resistance
0.1 ohms max
Performance
CAT6
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- IC107L6RWH
- Zoro #
- G709851092
- UPC #
- 633758093897
- Country of Origin
- Taiwan, Province of China
Details
- Color
- White
- Insulation Resistance
- 500 mohms min
- Plug Insertion Life
- 750 cycles min
- DC Resistance
- 0.1 ohms max
- Performance
- CAT6
- Plug Retention Force
- 50N (11lbs) for 60s ±5s
- Jack Wiring
- 50 microinches of Gold over 100 microinches of Nickel
- Colors XX
- AL-Almond, BK-Black, BL-Blue, GN-Green, GY-Gray, IV-Ivory, OR-Orange, PR-Purple, RD-Red, WH-White, YL-Yellow
- Connector
- Insulation Displacement Connector (IDC); accepts 22-24 AWG solid wire, 8P8C
- Temperature
- -40° to 150° F (-40° to 68° C)
- Termination Cap
- PC, UL 94V-0
- Plug and Jack Contact Force
- 100-gram min using FCC approved plug
- Current rating
- 1.5 amps
- Housing
- ABS, UL 94V-0
- Product Type
- Keystone Jacks
- Contact Resistance
- 20 mohms max
- Jack Style
- EZ
Description
CAT6 rated connectors provide excellent performance- Data networks requiring max speed and bandwidth- PCB technology provides maximum performance and superior signal quality- Enhanced crosstalk cancellation reduces return loss and improves performance- Rejecting noise and unwanted signals- Designed with in-line 110 IDC, in-sequence termination reducing termination time- Terminate with 110 punch down tool- JackEasy Termination Tool- One piece termination cap allows for a quick and easy termination- Includes an integrated TIA-568A/B color wiring diagram- Backward compatible with all lower rated category components- Works with all Work Area Outlets faceplates, inserts, surface mount boxes- Used with ICC Category 6 patch cords- Exceeds ANSI/TIA-568-C requirements for permanent performances- UL 1863 Compliant
