This item is Discontinued.

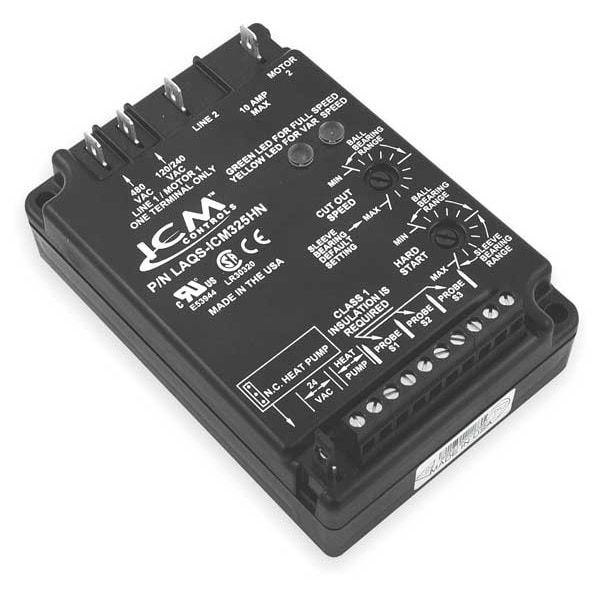

Icm Head Pressure Control ICM325HNC-LF

Head Pressure Control (Discontinued)

  • Mfr # ICM325HNC-LF
  • Zoro # G3442975
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ICM325HNC-LF
Zoro #
G3442975
UPC #
800442019628
Country of Origin
United States

Dimensions

Overall Width
3 1/4 in
Overall Depth
4 3/4 in
Overall Height
1 3/4 in

Details

Input Volts AC @ 60/50 Hz
120 to 480
Triac Output Amps
0.1 to 10.0
Hard Start Timing (Sec.)
0.1 to 5.0
Ambient Temp. Range (C)
-40 to 75
Pressure
Cutoff and Liquid Slugging in Low Ambient Condition, Low
Function
Heat Pump Override and Adjustable Hard Start Timming and Motor Cutout Speed, High Temperature Bypass
Control Volts
18 to 30
Controls
Head Pressure By Varying the Amount of Air Through the Condenser to Help Prevent Evaporator Freeze Up
Item
Head Pressure Control
Status Indicator
Full or Modulated Motor Voltage at a Glance, Green and Yellow Light
Requires
Separate 24V AC Source
Items Controlled
Fans
Product Type
Head Pressure Control
Maximum Time Setting
5 sec
Minimum Operating Temperature
-40 Degrees F
Frequency
50/60 Hz
Maximum Input Wattage
1.8 VA
Minimum Temperature Setting
70 Degrees F
Compatible Temperature Sensor
Thermistor
Minimum Time Setting
0.1 sec
Percentage of Supply Voltage to Start
40 %
Input Voltage
120 to 480V AC
Weight
0.5 lb
Application
Air Conditioning, Heat Pumps
Electrical Connection Type
Hardwired
Maximum Operating Temperature
167 Degrees F
Maximum Temperature Setting
100 Degrees F
Primary Voltage
120/480V AC
Standards
RoHS
Series
E31
Input Sensor Type
Pressure Sensor
Output Current
10 A
Heat Pump Override
Override

Description

Head Pressure Control, Maximum Temperature Setting 100 Degrees F, Minimum Temperature Setting 70 Degrees F, Input Voltage 120 to 480V AC, Electrical Connection Type Hardwired, Heat Pump Override Override, Output Current 10 A, Input Sensor Type Pressure Sensor, Product Type Head Pressure Control, Overall Height 1 3/4 in, Overall Width 3 1/4 in, Overall Depth 4 3/4 in, Application Air Conditioning, Heat Pumps, Minimum Operating Temperature -40 Degrees F
