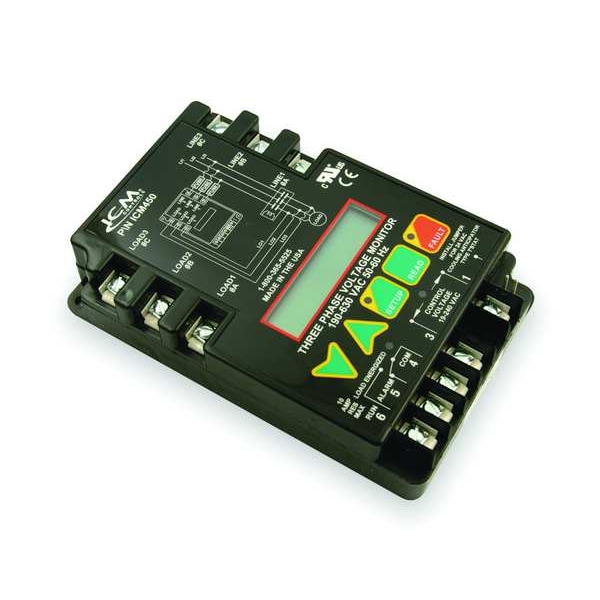

Line Voltage Monitor, Manual/Automatic Reset, 18V AC/240V AC, 3 Phase, 50/60 Hz, SPDT

  • Mfr # ICM450A
  • Zoro # G2019771
product price:
$
209.99
/ea
Free Shipping & Returns

Key Features

Application
Protects 3 Phase Motors And Equipment From Voltage Faults
Voltage
190V to 600V
Phase
Three
Frequency
50/60 Hz
Height
1 1/2 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
ICM450A
Zoro #
G2019771
UPC #
800442015651
Country of Origin
United States

Dimensions

Height
1 1/2 in
Depth
6 1/2 in
Width
4 1/4 in
Overall Height
1 1/16 in
Overall Length
6 1/2 in
Overall Width
4 3/4 in
Wire Rope Length
6 1/2 in
Length
6 1/2 in

Details

Application
Protects 3 Phase Motors And Equipment From Voltage Faults
Voltage
190V to 600V
Phase
Three
Frequency
50/60 Hz
Item
Line Voltage Monitor
Hz
50/60 Hz
NC Output (Amps)
6 A
N.O. Output (Amps)
10 A
Delay
Button Adjustable
Memory Storage
Programmable 25-Fault
Time Delay
0 to 10 min, Adj.
For Use With
3 Phase Equipment
Includes
LCD Display
Agency Compliance
E60605, UL Recognized
Control Volts
18V to 240V
Monitors
High/Low Voltage, Incorrect Sequencing and Rapid Short Cycling, Phase Loss, Reversal, Voltage Unbalance
Temp. Rating (F)
-40 to 167
% Volts Unbalance
2 to 25, Adj.
Type
Manual or Automatic Reset
Standards
cULus
Operating Temperature - Minimum
-40 Degrees F
Maximum Voltage Measurement
600V AC
Communication Protocol
Modbus RS485
Contact Form
SPDT
Delay Type
Adjustable
Minimum Voltage Measurement
190V AC
True RMS
True-RMS Measuring
Mounting Style
Surface
Monitored Measurements
Line Voltage
Reset Type
Automatic Reset, Manual Reset
Minimum Contol Voltage
18V AC
Display Type
LCD
Programmable
Programmable
Maximum Control Voltage
240V AC
Normally Open Output Current
10 A
Normally Closed Output Current
6 A
Percentage Volts Unbalance
2 to 20%, Adj.
Operating Temperature - Maximum
149 Degrees F

Description

Line Voltage Monitor, Communication Protocol Modbus RS485, Contact Form SPDT, Delay Type Adjustable, Display Type LCD, Frequency 50/60 Hz, Maximum Control Voltage 240V AC, Maximum Voltage Measurement 600V AC, Memory Storage Programmable 25-Fault, Minimum Contol Voltage 18V AC, Minimum Voltage Measurement 190V AC, Monitored Measurements Line Voltage, Mounting Style Surface, Normally Closed Output Current 6 A, Normally Open Output Current 10 A, Operating Temperature - Maximum 149 Degrees F
