  11. Non-Programmable Thermostat, 1 H, None C, Battery, 3V DC

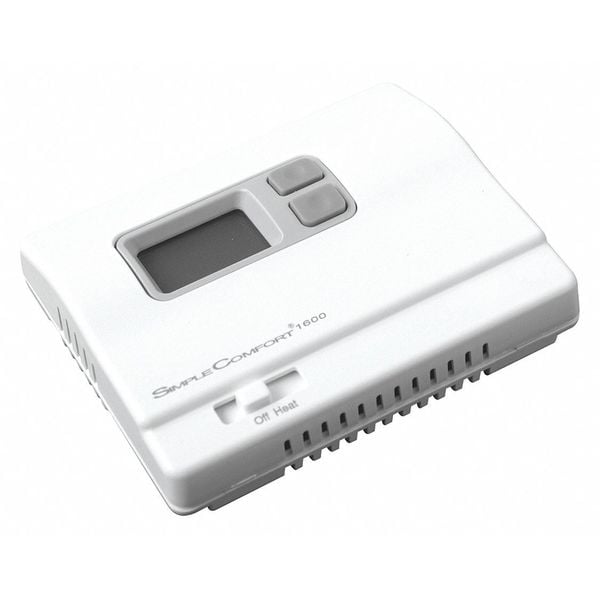

Icm Non-Programmable Thermostat, 1 H, None C, Battery, 3V DC SC1600L - main

Non-Programmable Thermostat, 1 H, None C, Battery, 3V DC

  • Mfr # SC1600L

  • Zoro # G8041516

product price: $65.89
/ea

Key Features

Voltage
3V DC
Stages Heat
1
Color
White
Control Range
45 Degrees F to 90 Degrees F
System Switching
Heat Only
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SC1600L
Zoro #
G8041516
UPC #
800442012544
Country of Origin
United States

Dimensions

Height
1 1/8"
Width
4 1/16"
Depth
1 in
Overall Depth
1 1/8 in
Overall Width
4 9/16 in
Overall Height
3 3/4 in

Details

Item
Non-Programmable Thermostat
Voltage
3V DC
Stages Heat
1
Color
White
Control Range
45 Degrees F to 90 Degrees F
System Switching
Heat Only
Stages Cool
None
Dual Transformer Compatible
No
Power Method
Battery
750mV Compatible
Yes
For Use With
Heating and Cooling
Terminal Designations
R,W,S1,S2
Features
ICM Patented Thermal Intrusion Barrier, Millivolt, Freeze Protection Feature, Compatible with Gas, Oil and Hydronic Systems
Low Battery Indicator
Yes
Occupancy Sensor
No
Temporary Temperature Hold
No
Automatic Changeover
No
Temporary Program Override
No
Dehumidification Control
No
Humidification Control
No
Battery Backup
No
Key Pad Lockout
No
Programmable Fan
No
Batteries Included
No
Temperature Limiting
No
Display
Digital
Filter Indicator
No
Control Type
Slide Switch
Mounting Direction
Horizontal, Vertical
Temperature Sensitivity
+/-1 Degrees F
Number of Heating Stages - Conventional System
1
Programming Capability
Not Programmable
Temperature Control Range
45 Degrees to 90 Degrees F
Thermostat Type
Low Voltage
Battery Type
(2) AA Batteries
Millivolt Compatible
Yes
Compatible System Type
Remote Sensor
System Settings
Heat-Off
Application
Heat Only

Description

Low Voltage Thermostat, Heat Only, Compatible System Type Remote Sensor, Slide Switch, Dehumidification Control No, Dual Transformer Compatible No, Humidification Control No, Key Features Freeze Protection, Key Pad Lockout No, Mounting Direction Horizontal, Vertical, Number of Heating Stages - Conventional System 1, Overall Depth 1 1/8 in, Overall Height 3 3/4 in, Overall Width 4 9/16 in, System Settings Heat-Off
