  11. RS-485 Remote I/O Module, M-7015P

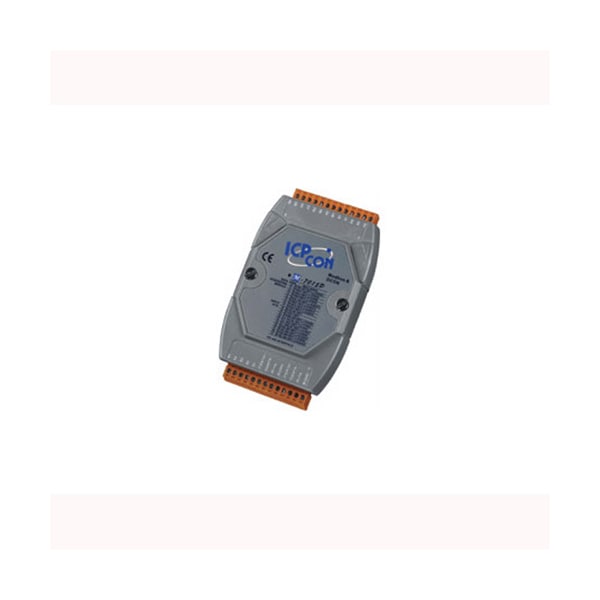

Icp Das RS-485 Remote I/O Module, M-7015P M-7015P - main

RS-485 Remote I/O Module, M-7015P

  • Mfr # M-7015P

  • Zoro # G000491621

product price: $827.99
/ea
Free Shipping & Returns

Key Features

Baud Rate
1200 ~ 115200bps
Input
+10 to +30 Vdc
Open Wire Detection
Yes
3-wire RTD lead resistance elimination
Yes
Common Mode Rejection
Typical 86dB
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
M-7015P
Zoro #
G000491621
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

-3dB BandWidth
5.24Hz

Details

Baud Rate
1200 ~ 115200bps
Input
+10 to +30 Vdc
Open Wire Detection
Yes
3-wire RTD lead resistance elimination
Yes
Common Mode Rejection
Typical 86dB
ESD Protection
4KV Contact for each terminal, and 8KV Air for random point
RTD Type
Pt100, Pt1000, Ni120, Cu100, Cu1000
Humidity
5 to 95% RH, non-condensing
Span drift
+/-25ppm/°C
Individual Channel Configurable
Yes
Power Consumption
1.2W
Watchdog
Yes, Module, Communication (Programmable over DCON) frmware version B202 ; and later
Resolution
16-bit
Intra-module Isolation, Field to Logic
3000 VDC
Interface Format
N, 8, 1
Accuracy
+/-0.05%
Storage temperature
-40 to 85°C
Voltage Input Impedance
>1M Ohms
Support Modbus and DCON Protoco
Yes
Normal Mode Rejection
100 dB
Operating temperature
-25 to 75°C
Wire connection
2/3 wire
Interface
Modbus RTU, RS-485
Input Channels
6
Zero Drift
+/-20uV/°C
Input Type
RTD
Sampling Rate
12 samples/ second (Total)
EFT Protection
4KV to Power, and 1KV to RS-485

Description

Modbus Version, 6 Channels of RTD module with 3 wire RTD lead resistance elimination
