  11. RS-485 Remote I/O Module, M-7016

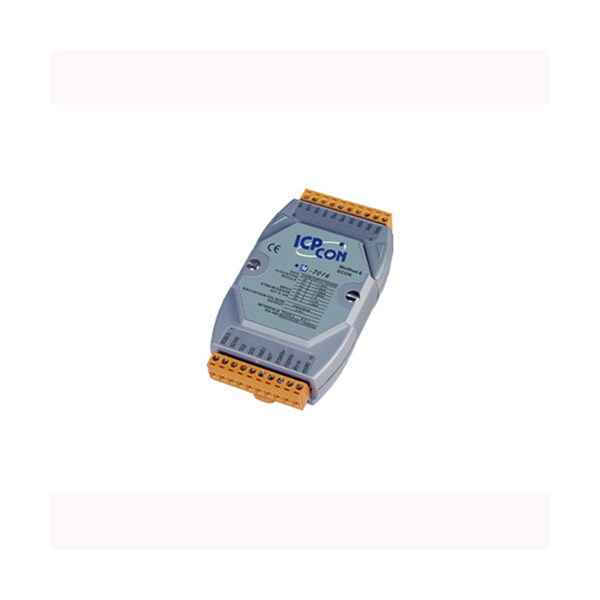

Icp Das RS-485 Remote I/O Module, M-7016 M-7016 - main

RS-485 Remote I/O Module, M-7016

  • Mfr # M-7016

  • Zoro # G700491594

product price: $662.99
/ea
Free Shipping & Returns

Key Features

Voltage Input Impedance
>1M Ohms
Input Channels
6
3-wire RTD lead resistance elimination
Yes
Wire connection
2/3 wire
ESD Protection
4KV Contact for each terminal, and 8KV Air for random point
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
M-7016
Zoro #
G700491594
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

-3dB BandWidth
5.24Hz

Details

Voltage Input Impedance
>1M Ohms
Input Channels
6
3-wire RTD lead resistance elimination
Yes
Wire connection
2/3 wire
ESD Protection
4KV Contact for each terminal, and 8KV Air for random point
RTD Type
Pt100, Pt1000, Ni120, Cu100, Cu1000
Interface Format
N, 8, 1
Intra-module Isolation, Field to Logic
3000 VDC
Accuracy
+/-0.05%
Common Mode Rejection
Typical 86dB
Sampling Rate
12 samples/ second (Total)
Normal Mode Rejection
100 dB
Power Consumption
1.2W
Interface
Modbus RTU, RS-485
Resolution
16-bit
Watchdog
Yes, Module, Communication (Programmable over DCON) frmware version B202 ; and later
Support Modbus and DCON Protoco
Yes
Open Wire Detection
Yes
Storage temperature
-40 to 85°C
Humidity
5 to 95% RH, non-condensing
Individual Channel Configurable
Yes
Span drift
+/-25ppm/°C
Input
+10 to +30 Vdc
Zero Drift
+/-20uV/°C
Input Type
RTD
Operating temperature
-25 to 75°C
Baud Rate
1200 ~ 115200bps
EFT Protection
4KV to Power, and 1KV to RS-485

Description

Modbus Version, Strain Gauge input module
