  11. RS-485 Remote I/O Module, M-7017Z

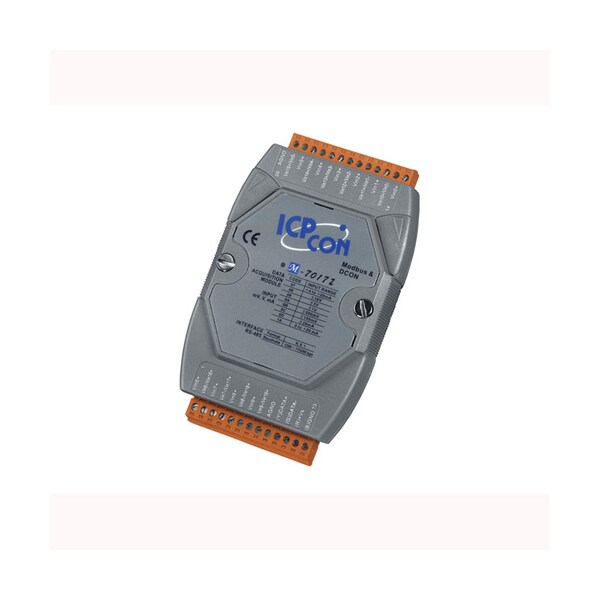

Icp Das RS-485 Remote I/O Module, M-7017Z M-7017Z - main

RS-485 Remote I/O Module, M-7017Z

  • Mfr # M-7017Z

  • Zoro # G300491697

product price: $688.99
/ea
Free Shipping & Returns

Key Features

Over voltage Protection
Differential: 240 Vrms, Single-ended: 150Vrms
Input Channels
10 differential or 20 single-ended (Note1), software selectable
Zero Drift
±20uV/°C
Buad Rate
1200 ~ 115200bps
Normal Mode Rejection
100dB
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
M-7017Z
Zoro #
G300491697
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

Band Width
15.7Hz (Normal Mode) / 78.7Hz (Fast Mode)

Details

Over voltage Protection
Differential: 240 Vrms, Single-ended: 150Vrms
Input Channels
10 differential or 20 single-ended (Note1), software selectable
Zero Drift
±20uV/°C
Buad Rate
1200 ~ 115200bps
Normal Mode Rejection
100dB
Interface Format
N, 8, 1
Operating temperature
-25 to 75°C
Power Consumption
2.0W
Watchdog
Yes, Module, Communication (Programmable over DCON) firmware version ; B300 and later
Support Modbus and DCON Protocol
Yes
Storage temperature
-40 to 85°C
Sampling Rate
10 samples/ second (Normal Mode) / 60 samples/ second (Fast Mode) total
Span drift
±25ppm/°C
Common Mode Rejection
86dB min.
Intra-module Isolation, Field to Logic
3000 VDC
Input
+10 to +30 VDC
1 LED
Power/Communication indicator
Input Type
±500mV, ±1V, ±5V, ±10V, ±150mV; ±20mA ,0~20mA, 4~20mA (jumper selectable)
EFT Protection
4KV to Power, and 1KV to RS-485
Humidity
5% to 95%, non-condensing
Accuracy
±0.1% (Normal Mode) / ±0.5% (Fast Mode) or better
Interface
RS-485
ESD Protection
4KV Contact for each terminal, and 8KV Air for random point
Input Impedance
Voltage: 2M Ohms(Differential), 1M Ohms(Single-ended) /Current: 125 Ohms
Resolution
16-bit (Normal Mode) / 12-bit (Fast Mode)

Description

Modbus Version, 10 / 20 Analog Inputs with high voltage protection
