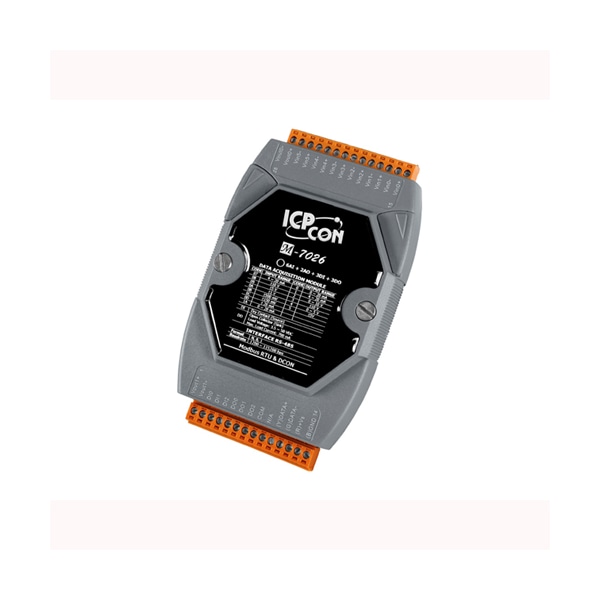

Icp Das RS-485 Remote I/O Module, M-7026 M-7026 - main

RS-485 Remote I/O Module, M-7026

  • Mfr # M-7026

  • Zoro # G900491561

product price: $717.99
/ea
Free Shipping & Returns

Key Features

Resolution
12-bit, 16-bit
Accuracy
±0.1% of FSR
Short-circuit Protection
Yes
Current
140 Ω
Channels (Analog Input)
6
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
M-7026
Zoro #
G900491561
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

Min. Pulse Width
5 ms

Details

Resolution
12-bit, 16-bit
Accuracy
±0.1% of FSR
Short-circuit Protection
Yes
Current
140 Ω
Channels (Analog Input)
6
Open Wire Detection for 4 ~ 20 mA
Yes
Wiring
Differential
Sink/Source (NPN/PNP)
Sink
Max. Load Current
700 mA/Channel
Range
±150 mV, ±500 mV, ±1 V, ±5 V, ±10 V; ±20 mA , 0 ~ 20 mA, 4 ~ 20 mA(Jumper Selectable), +0 ~ +5 VDC, +0 ~ +10 VDC, ; ±5 VDC, ±10 VDC; +0 ~ +20 mA, +4 ~ +20 mA (Jumper Selectable)
Output Channels
3
Type
Open Collector
Power-on Value
Yes, Programmable
Safe Value
Yes, Programmable
Overvoltage Protection
240 Vrms, 60 VDC
Channels (Analog Output)
2
Virtual Channel to Channel Isolation
Yes,400 VDC
Load Voltage
+ 3.5 VDC~ + 50 VDC
Individual Channel Configuration
Yes
Overload Protection
Yes
Common Voltage Protection
±200 V
Max. Input Frequency
100 Hz
Off Voltage Level
Open
Channels (Digital Input/Counter)
3
Overcurrent Protection
Yes, 50 mA at 110 VDC
Output Capacity Voltage Output Capability
10 V @ 20 mA
Open Wire Detection
Yes, for 4 ~ 20 mA only

Description

Modbus Version, 6 Analog Inputs, 2 Analog Outputs, 3 Digital Inputs and 3 Digital Outputs
