RS-485 Remote I/O Module, M-7051D
- Mfr # M-7051D
- Zoro # G000491485
product price:Â
$
373.99
/ea
Free Shipping & Returns
Key Features
Counters
channels : 16
Photo-Isolation
3750Vrms
Operating temperature
-25 to 75°C
Effective Distance
500M max. for Dry Contact
Wet Contact
Off Voltage Level : +4V max.
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- M-7051D
- Zoro #
- G000491485
- UPC #
- -
- Country of Origin
- Taiwan, Province of China
- Counters
- channels : 16
- Photo-Isolation
- 3750Vrms
- Operating temperature
- -25 to 75°C
- Effective Distance
- 500M max. for Dry Contact
- Wet Contact
- Off Voltage Level : +4V max.
- Interface
- RS-485
- Over-Voltage Protect
- 70VDC
- Power Consumption
- 0.6W (M-7051) / 1.5W (M-7051D)
- Humidity
- 5 to 95% RH, non-condensing
- Input Impedance
- 10K Ohms, 0.5W
- Support Modbus and DCON Protocol
- Yes
- Input Type
- Dry Contact(Source), Wet Contact(Sink, Source)
- Baud Rate
- 1200 ~ 115200bps
- Dry Contact
- Off Voltage Level : open
- Input Voltage Range
- 10~30VDC
- Channels
- 16
- Storage temperature
- -40 to 85°C
- Interface Format
- N, 8, 1
Description

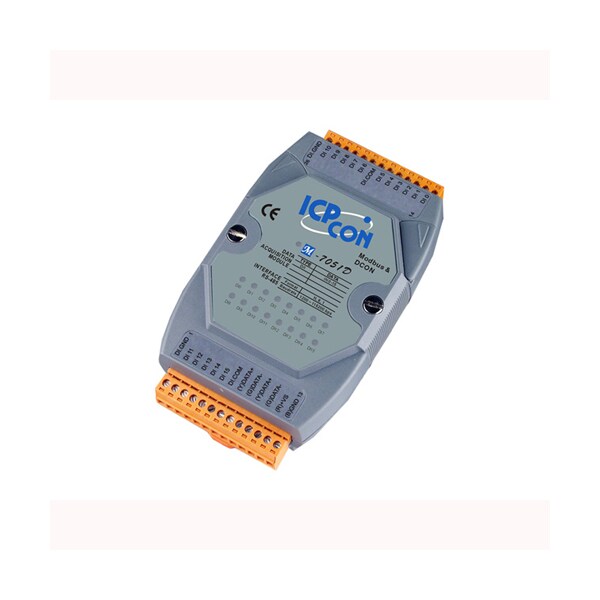

M-7051 with LED display
