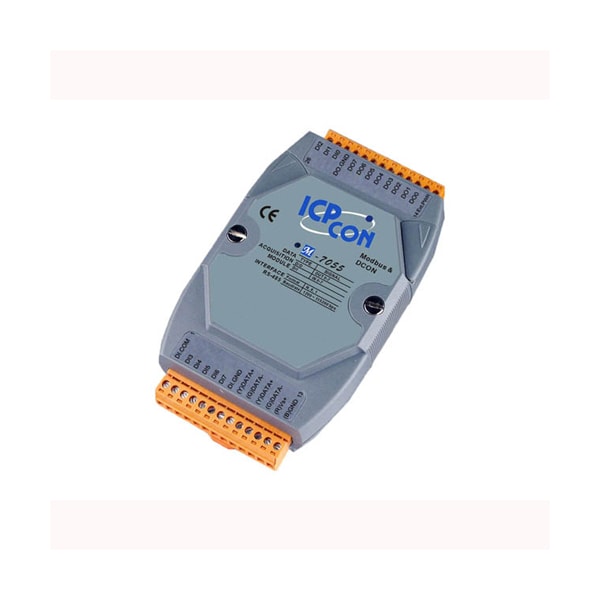

Icp Das RS-485 Remote I/O Module, M-7055 M-7055 - main

RS-485 Remote I/O Module, M-7055

  • Mfr # M-7055

  • Zoro # G400491603

product price: $318.99
/ea
Free Shipping & Returns

Key Features

Counters
channels : 8
Output Voltage
10 to 40V max
Dry Contact Level
Off Voltage Level :Open
Photo-Isolation
3750 VDC
Output Current
650mA per channel,Direct drive power relay module
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
M-7055
Zoro #
G400491603
UPC #
-
Country of Origin
Taiwan, Province of China

Details

Counters
channels : 8
Output Voltage
10 to 40V max
Dry Contact Level
Off Voltage Level :Open
Photo-Isolation
3750 VDC
Output Current
650mA per channel,Direct drive power relay module
Channels (Digital Output)
8, Source, NMOS
Intra-module Isolation, Field to Logic
3750 Vrms
Channels (Digital Input)
8
Interface Format
N, 8, 1
Humidity
5 ~ 95% RH, non-condensing
Wet Contact Level
Off Voltage Level : +4V max.
Interface
RS-485
Input Voltage Range
10 ~ 30 VDC
Baud Rate
1200 ~ 115200bps
4KV ESD Protection (IEC 61000-4-2)
Yes, contact for each terminal
Support Modbus and DCON Protocol
Yes
Operating temperature
-25 ~ 75°C
Input Impedance
10K Ohms, 0.5W
Overvoltage Protection
47 VDC
Thermal Overload trip temperature
150°C
Input Type
Dry Contact: Source, Wet Contact: Sink or Source
Overload Protection
Yes
Power Consumption
1.2W (M-7055)/2.2W (M-7055D)
Storage temperature
-40 ~ 85°C
Short-circuit and Overcurrent Protection
Yes, 1.4 A

Description

Modbus Version, 8-channel Isolated Digital Input and 8-channel Isolated Digital Output Module
