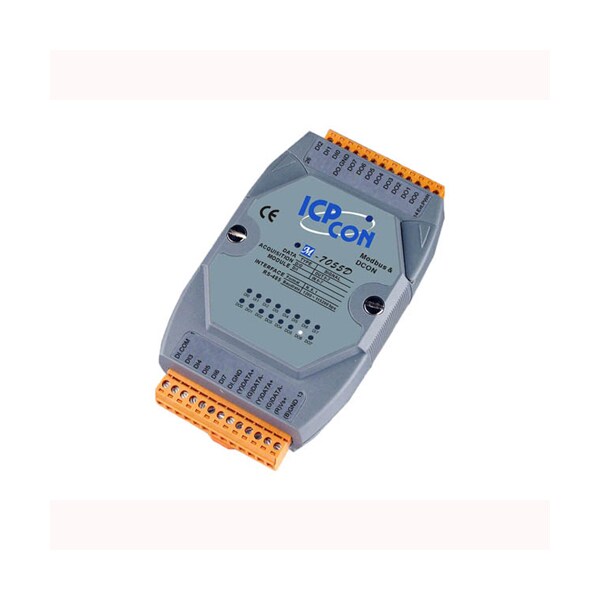

RS-485 Remote I/O Module, M-7055D

  • Mfr # M-7055D

  • Zoro # G000491645

product price:  $384.99
/ea
Free Shipping & Returns

Key Features

Counters
channels : 8
Channels (Digital Output)
8, Source, NMOS
Storage temperature
-40 ~ 85°C
Thermal Overload trip temperature
150°C
Output Voltage
10 to 40V max
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
M-7055D
Zoro #
G000491645
UPC #
-
Country of Origin
Taiwan, Province of China

Details

Counters
channels : 8
Channels (Digital Output)
8, Source, NMOS
Storage temperature
-40 ~ 85°C
Thermal Overload trip temperature
150°C
Output Voltage
10 to 40V max
Intra-module Isolation, Field to Logic
3750 Vrms
Channels (Digital Input)
8
Input Type
Dry Contact: Source, Wet Contact: Sink or Source
Output Current
650mA per channel,Direct drive power relay module
Input Impedance
10K Ohms, 0.5W
Photo-Isolation
3750 VDC
Support Modbus and DCON Protocol
Yes
Overload Protection
Yes
Humidity
5 ~ 95% RH, non-condensing
Wet Contact Level
Off Voltage Level : +4V max.
Baud Rate
1200 ~ 115200bps
Input Voltage Range
10 ~ 30 VDC
Dry Contact Level
Off Voltage Level :Open
Short-circuit and Overcurrent Protection
Yes, 1.4 A
Interface Format
N, 8, 1
Overvoltage Protection
47 VDC
Power Consumption
1.2W (M-7055)/2.2W (M-7055D)
Operating temperature
-25 ~ 75°C
Interface
RS-485
4KV ESD Protection (IEC 61000-4-2)
Yes, contact for each terminal

Description

M-7055 with LED display
