  11. RS-485 Remote I/O Module, M-7080BD

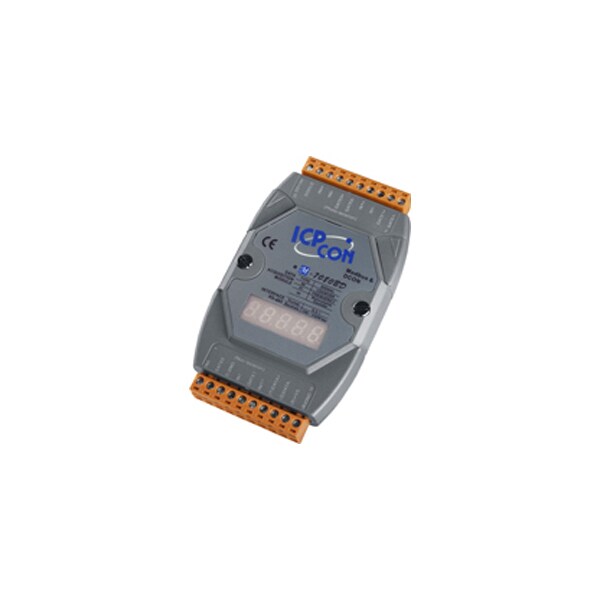

Icp Das RS-485 Remote I/O Module, M-7080BD M-7080BD - main

RS-485 Remote I/O Module, M-7080BD

  • Mfr # M-7080BD

  • Zoro # G800491449

product price: $513.99
/ea
Free Shipping & Returns

Key Features

Output Type
Source, Open-Collector
Isolated Input Level
Logic level 0:+1V max.
Interface
RS-485
Non-Isolated Input Level (Programmable)
Logic level 0: 0 to +5V (default= 0.8V)
Humidity
5 to 95%, non-condensing
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
M-7080BD
Zoro #
G800491449
UPC #
-
Country of Origin
Taiwan, Province of China

Details

Output Type
Source, Open-Collector
Isolated Input Level
Logic level 0:+1V max.
Interface
RS-485
Non-Isolated Input Level (Programmable)
Logic level 0: 0 to +5V (default= 0.8V)
Humidity
5 to 95%, non-condensing
Power Consumption
2.0W (M-7080B-G) / 2.2W (M-7080BD-G)
Maximum Count
32bit (4,294,967,295)
Built-in Virtual Battery Back Up
for Counter Value
Input Type
Isolated or non-isolated
Programmable Digital Noise Filter
2us to 65ms
Isolation Voltage
3750Vrms
Alarming
alarm on counter 0 or counter 0 & 1, programmable
Output Voltage
30V max.
Input Voltage Range
10~30VDC for M-7080 and ; M-7080D, 24~30VDC for M-7080B and M-7080BD
Baud Rate
1200 ~ 115200bps
Support Modbus and DCON Protocol
Yes
Input Frequency
1Hz to 100KHz max.
5-digit readout
Channel 0 or Channel 1 (for M-7080BD-G)
Counter Rreset Value
programmable
1 LED
as Power/ Communication indicator
Gate Time
1.0 or 0.1sec, programmable
Operating temperature
-25 to 75°C
Interface Format
N, 8, 1
Storage temperature
-40 to 85°C
Output Current
30mA max
Channels (Digital Input)
2
Channels (Digital Output)
2 independent 32-bit counters, counter 0&1

Description

M-7080B with LED display
