  11. Adhesive Lined Heat Shrink Tube, Heavy Wall, 3:1 I.D. Shrink Ratio, 0.4 in I.D. Before Shrinking
Ideal Adhesive Lined Heat Shrink Tube, Heavy Wall, 3:1 I.D. Shrink Ratio, 0.4 in I.D. Before Shrinking 46-346 - main

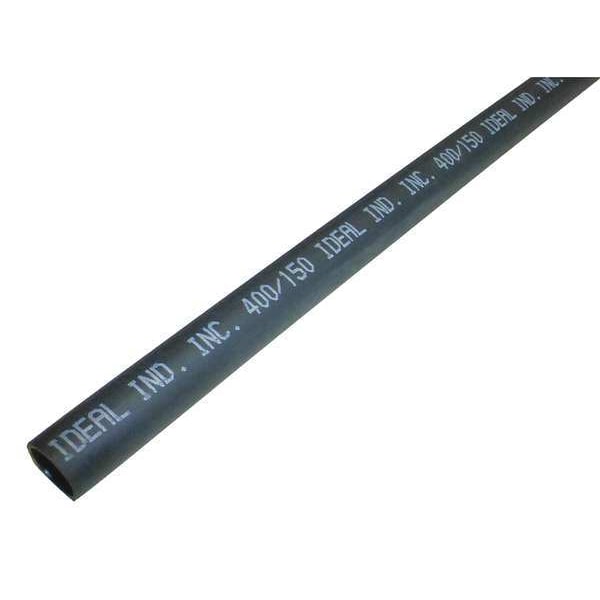

Adhesive Lined Heat Shrink Tube, Heavy Wall, 3:1 I.D. Shrink Ratio, 0.4 in I.D. Before Shrinking

  • Mfr # 46-346

  • Zoro # G5363732

product price: $200.99
/pk 5, $40.20/ea
Free Shipping & Returns

Key Features

Shrink Ratio
3:1
Wall Type
Heavy Wall
Shrink Tubing I.D. Before Shrinking
0.4 in
Shrink Tubing I.D. After Shrinking
0.15 in
Material
Cross-Linked Polyolefin
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
46-346
Zoro #
G5363732
UPC #
783250463466
Country of Origin
United States

Dimensions

Length
4 ft
Use with Wire Size
12 to 8 AWG
Shrink Tubing Wall Thickness After Shrinking
0.06 in
Use With Wire Size
12 to 8 AWG
Wall Thickness After Shrinking
0.06 in

Details

Item
Adhesive Lined Heat Shrink Tube
Shrink Ratio
3:1
Wall Type
Heavy Wall
Shrink Tubing I.D. Before Shrinking
0.4 in
Shrink Tubing I.D. After Shrinking
0.15 in
Material
Cross-Linked Polyolefin
Color
Black
Temp. Range
-55° to 110°F
Min. Shrink Temp.
248°F
Flame Retardant
Yes
Standards
ANSI C119.1, C37.20.2, CSA C22.2 No. 198.2, ICEA S-19-8, IEEE 383 Vertical Flame Test, MIL-DTL-23053/15, UL 486D, Western Underground Guides Nos. 2.4, 2.5
Max. Voltage
600 V
Features
Flame Retardant
Tubing Wall Type
Heavy Wall
Adhesive Lined
Yes
Min. Temp. Rating
-55 Degrees F
Shrink Tubing Properties
Solvent Resistant, UV Light Resistant
Max. Temp. Rating
110 Degrees F
Dielectric Strength
600 V
Package Style
Individual Pieces
I.D. Before Shrinking
0.4 in
I.D. After Shrinking
0.15 in

Description

Heat Shrink Tubing, Heavy Wall, Material Cross-Linked Polyolefin with Adhesive, Semi Rigid, Flame Retardant Yes, Adhesive Lined Yes, Shrink Ratio 3:1, Use With Wire Size 12 AWG to 8 AWG, I.D. Before Shrinking 0.4 in, I.D. After Shrinking 0.15 in, Wall Thickness After Shrinking 0.06 in, Length 4 ft, Shrink Tubing Properties Solvent-Resistant, UV Light-Resistant, Color Black, Temp. Range -55 Degrees to 110 Degrees F, Package Style Individual Pieces, Min. Shrink Temp. 248 Degrees F
