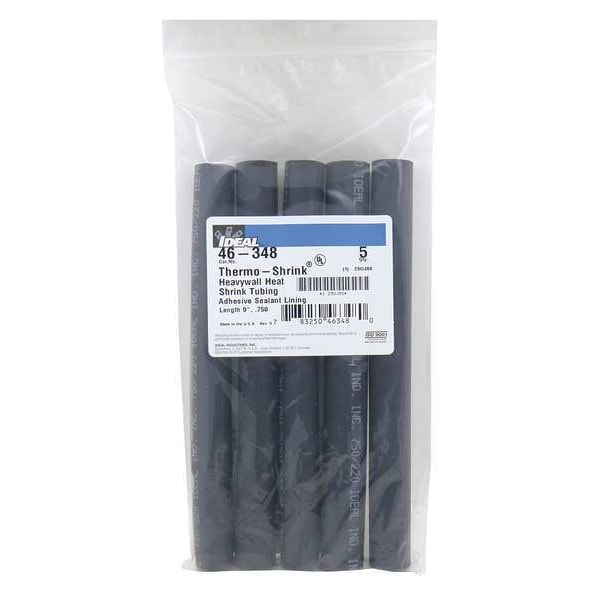

Adhesive Lined Heat Shrink Tube, Heavy Wall, 3:1 I.D. Shrink Ratio, 0.75 in I.D. Before Shrinking, 5 PK
- Mfr # 46-348
- Zoro # G5371642
product price:Â
$
57.45
/pk of 5, $11.49/ea
Key Features
Shrink Ratio
3:1
Wall Type
Heavy Wall
Shrink Tubing I.D. Before Shrinking
3/4 in
Shrink Tubing I.D. After Shrinking
0.24 in
Material
Cross-Linked Polyolefin
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 46-348
- Zoro #
- G5371642
- UPC #
- 783250463480
- Country of Origin
- United States
- Item
- Adhesive Lined Heat Shrink Tube
- Shrink Ratio
- 3:1
- Wall Type
- Heavy Wall
- Shrink Tubing I.D. Before Shrinking
- 3/4 in
- Shrink Tubing I.D. After Shrinking
- 0.24 in
- Material
- Cross-Linked Polyolefin
- Color
- Black
- Temp. Range
- -55° to 110°F
- Min. Shrink Temp.
- 248°F
- Features
- Flame Retardant
- Max. Voltage
- 600 V
- Flame Retardant
- Yes
- Standards
- ANSI C119.1, C37.20.2, CSA C22.2 No. 198.2, ICEA S-19-8, IEEE 383 Vertical Flame Test, MIL-DTL-23053/15, UL 486D, Western Underground Guides Nos. 2.4, 2.5
- Tubing Wall Type
- Heavy Wall
- Adhesive Lined
- Yes
- Min. Temp. Rating
- -55 Degrees F
- Shrink Tubing Properties
- Solvent-Resistant, UV Light-Resistant
- Max. Temp. Rating
- 110 Degrees F
- Package Style
- Individual Pieces
- Dielectric Strength
- 600 V
- I.D. Before Shrinking
- 0.75 in
- I.D. After Shrinking
- 0.24 in
Description
Heat Shrink Tubing, Heavy Wall, Material Cross-Linked Polyolefin with Adhesive, Semi Rigid, Flame Retardant Yes, Adhesive Lined Yes, Shrink Ratio 3:1, Use With Wire Size 6 AWG to 2/0 AWG, I.D. Before Shrinking 0.75 in, I.D. After Shrinking 0.24 in, Wall Thickness After Shrinking 0.09 in, Length 9 in, Shrink Tubing Properties Solvent-Resistant, UV Light-Resistant, Color Black, Temp. Range -55 Degrees to 110 Degrees F, Package Style Individual Pieces, Min. Shrink Temp. 248 Degrees F
