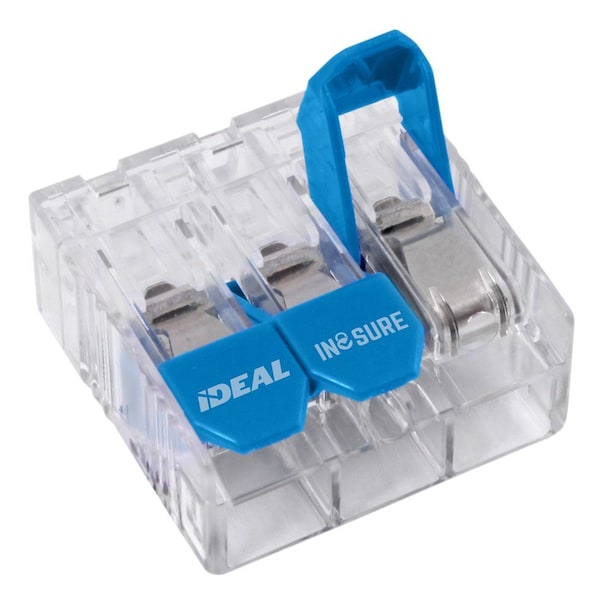

Lever Wire Connector, 10 AWG Max, 3 Port, Blue, Clear, 600 V, 75 PK
Mfr # 30-10L33
Zoro # G016123967
product price: $45.19
/pk 75, $0.60/eaKey Features
Type
Lever
Color
Blue, Clear
Maximum Wire Size
10 AWG
Minimum Wire Size
22 AWG
Maximum Voltage
600 V
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
30-10L33
Zoro #
G016123967
UPC #
783250749775
Country of Origin
China
Dimensions
Maximum Wire Size
10 AWG
Minimum Wire Size
22 AWG
For Minimum Wire Size - Solid
22 AWG
For Maximum Wire Size - Solid
10 AWG
For Maximum Wire Size - Stranded
10 AWG
For Minimum Wire Size - Stranded
22 AWG
Details
Item
Lever Wire Connector
Type
Lever
Color
Blue, Clear
Maximum Voltage
600 V
Number of Ports
3
RoHS Compliant
Yes
Connector Type
3 Port
Special Features
Clear Housing for Visual Inspection, Terminate up to 2 Conductors in any Combination of the Listed Wire Gauges, Reusable, Solid Wires can be Inserted without Opening Lever
Standards
CE, cULus E5238, EN EC, RoHS, UKCA
Description
Lever Wire Connector, Color Blue, For Conductor Material Copper, Copper-Clad Aluminum, For Minimum Wire Size - Stranded 22 AWG, For Maximum Wire Size - Stranded 10 AWG, Housing Material Polycarbonate, Maximum Temperature 221 Degrees F, Maximum Voltage 600 V, Overall Height 0.43 in, Overall Length 0.89 in, Overall Width 0.94 in, Connector Type Lever, UL 94 Flammability Rating V-2, Number of Ports 3, RoHS Compliant Yes, Standards CE, cULus E5238, EN EC, RoHS, UKCA, Current 30 A
