  11. Lever Wire Connector, 12 AWG Max, 5 Port, Blue, Polycarbonate Insulation, 600 V, 20 A, 75 PK

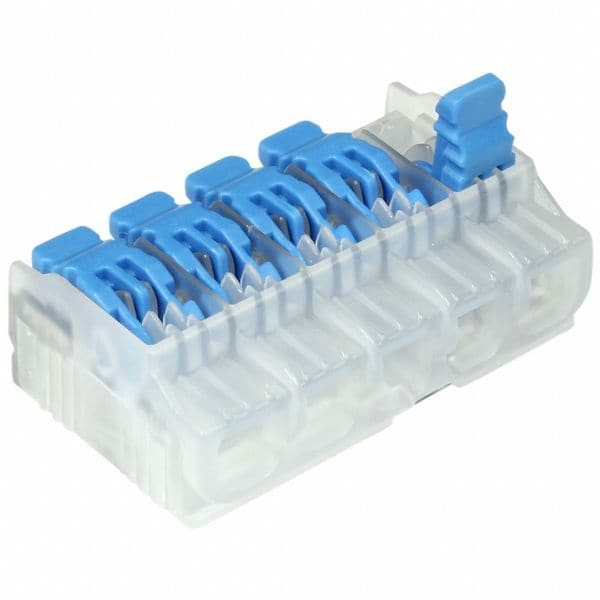

Ideal Lever Wire Connector, 12 AWG Max, 5 Port, Blue, Polycarbonate Insulation, 600 V, 20 A, 75 PK 30-10L25 - main

Lever Wire Connector, 12 AWG Max, 5 Port, Blue, Polycarbonate Insulation, 600 V, 20 A, 75 PK

  • Mfr # 30-10L25

  • Zoro # G206458534

product price: $54.25
/pk 75, $0.72/ea

Key Features

Type
Push-In
Color
Blue
Maximum Wire Size
12 AWG
Minimum Wire Size
24 AWG
Insulation Material
Polycarbonate
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
30-10L25
Zoro #
G206458534
UPC #
783250846962
Country of Origin
Austria

Dimensions

Maximum Wire Size
12 AWG
Minimum Wire Size
24 AWG
Overall Length
1.23 in
Overall Height
0.41 in
For Maximum Wire Size - Solid
12 AWG
For Maximum Wire Size - Stranded
12 AWG
Strip Length
7/16 in
Overall Width
0.77 in
For Minimum Wire Size - Solid
24 AWG
For Minimum Wire Size - Stranded
24 AWG

Details

Item
Lever Wire Connector
Type
Push-In
Color
Blue
Insulation Material
Polycarbonate
Maximum Voltage
600 V
Current
20 A
Maximum Operating Temperature
221 Degrees F
Number of Ports
5
UL 94 Flammability Rating
V-2
RoHS Compliant
Yes
Standards
CE Certified, cUL, IEC/EN, RoHS, UL
Material
Copper
Special Features
Two-Stage Lock for a Secure Connection
For Conductor Material
Copper

Description

Lever Wire Connector, Color Blue, For Conductor Material Copper, For Minimum Wire Size - Stranded 24 AWG, For Maximum Wire Size - Stranded 12 AWG, Housing Material Polycarbonate, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 600 V, Overall Height 0.41 in, Overall Length 1.23 in, Overall Width 0.77 in, Connector Type Lever, UL 94 Flammability Rating V-2, Number of Ports 5, RoHS Compliant Yes, Standards CE, cUL, IEC/EN, RoHS, UL, Contact Material Copper, Current 20 A

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
