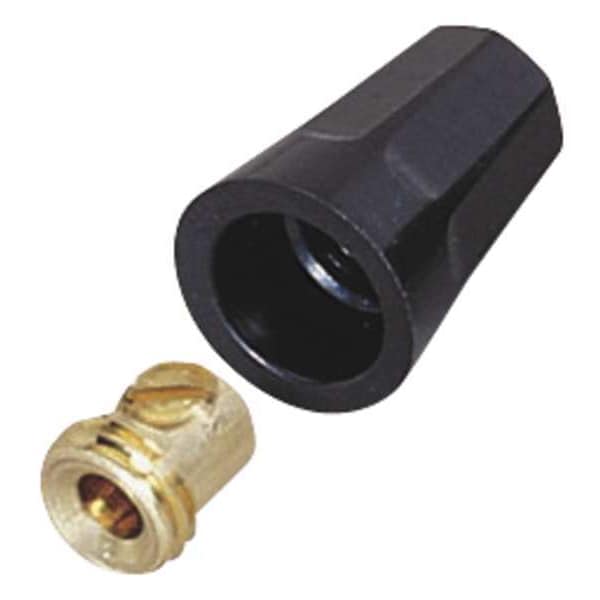

Mechanical Lug, Black, 300 V, 10 PK
Mfr # 30-1222G
Zoro # G1252185
product price: $8.95
/pk 10, $0.89/eaKey Features
No. of Conductors
1
Color
Black
Min. Conductor Size
22 AWG Solid
Max. Conductor Size
10 AWG Solid
Maximum Voltage
300 V
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
30-1222G
Zoro #
G1252185
UPC #
783250628544
Country of Origin
United States
Dimensions
Min. Conductor Size
22 AWG Solid
Max. Conductor Size
10 AWG Solid
Stud Size
9/64 in
Width
0.5 in
Length
0.7 in
Length (Straight Wireway)
0.7 in
For Stud Size
9/64 in
Overall Length
0.7 in
Overall Width
0.5 in
Details
Item
Mechanical Lug
No. of Conductors
1
Color
Black
Maximum Voltage
300 V
Minimum Wire Combination
(1) 20 AWG with (1) 22 AWG
Maximum Wire Combination
(2) 14 AWG with (1) 16 AWG
Material
Brass
Body Material
Brass
Special Features
Eliminates Need for Restriping Wire Each Time the Connection is Disturbed, Tough, Flame-Retardant Shell
Number of Conductors
1
Max. Voltage
300
Description
Mechanical Connectors, For Conductor Material Copper, For Stranded Copper Wire Size - Minimum 14 AWG, For Stranded Copper Wire Size - Maximum 10 AWG, For Stud Size 9/64 in, Head Style Slotted, Number of Holes 1, Hole Diameter 0.13 in, Hole Spacing Not Applicable, Body Material Brass, Maximum Operating Temperature 302 Degrees F, Maximum Voltage 600 V, Number of Conductors 1, Number of Terminations 1, Tongue Length Not Applicable, Tongue Width Not Applicable, Tongue Thickness Not Applicable
