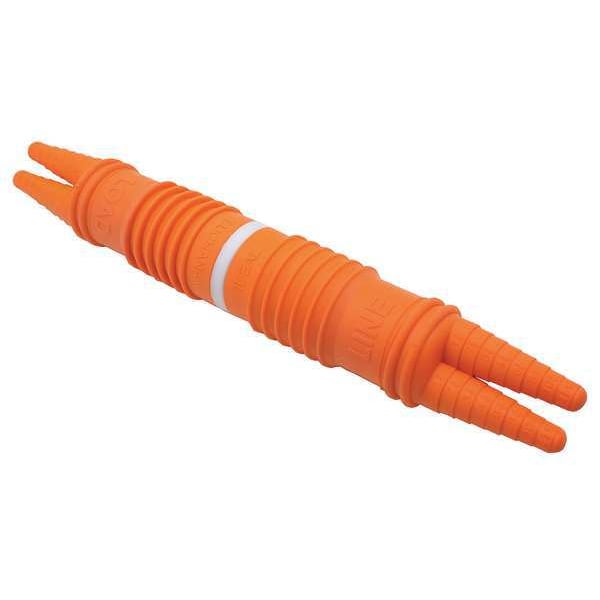

Ideal St Lght Dscnnct, Crimp, Y-Tap, Non-Fused 30-C2626N - main

St Lght Dscnnct, Crimp, Y-Tap, Non-Fused

  • Mfr # 30-C2626N

  • Zoro # G5818556

product price: $114.99
/ea
Free Shipping & Returns

Key Features

Style
Y-Tap
Breakaway/Non-Breakaway
Breakaway
Insulation
Polypropylene, TPE
Primary Wire Range
10 to 14 AWG
Color
Orange
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
30-C2626N
Zoro #
G5818556
UPC #
783250742967
Country of Origin
United States

Dimensions

Overall Length
8 1/2 in
For Minimum Line Wire Size
14 AWG
For Minimum Load Wire Size
14 AWG
For Maximum Load Wire Size
10 AWG
For Maximum Line Wire Size
10 AWG
Length
1,000'

Details

Item
Street Light Disconnect
Style
Y-Tap
Breakaway/Non-Breakaway
Breakaway
Insulation
Polypropylene, TPE
Primary Wire Range
10 to 14 AWG
Color
Orange
Insulation Color
Orange
Connection Type
Crimp
Wire Range
2-14 AWG (Cu & Al rated)
Design
Non-Fused
Secondary Wire Range
10 to 14 AWG
Secondary Connections/Pole
2
Max. Voltage
600V AC
Max. Temp.
105 Degrees C
Standards
UL 486D, UL Listed
Primary Connections/Pole
2
Connection Material
Tin-Plated Brass
Maximum Operating Temperature
221 Degrees F
Secondary Connection Poles
2
Compatible with Product Type
Street Lights
Disconnect Breakaway
Breakaway
Compatible with Series
SLK
For Conductor Material
Aluminum, Copper
Termination Style
Set Screw
Current
30 A
Load Outputs
2
UL 94 Flammability Rating
V-2
Fused
No
Primary Connection Poles
2
Contact Finish
Tin
Insulation Material
Polypropylene, TPE
Maximum Voltage
600 V
Line Inputs
2
Disconnect Style
Breakaway Disconnect
Special Features
De-Energizes Roadway Lights, Streetlights, Parking Lot Lights and Other Freestanding Electrical Fixtures in the Event of a Knockdown or When Fixtures Need Maintenance, Helps Protect First Responders, Bystanders and Service Personnel From Potentially Life-Threatening Electrical Shock Hazards
Contact Material
Brass
Ratings
30A, 600V, 105°C
Street Light Kit Type
2 Wire Line / 2 Wires Load Non-Fused
Maximum Rated Voltage
600V
Maximum Wire Gauge
10 AWG
SLK Type
Crimp
Number of Wires (Line Side)
2 Wire
Number of Wires (Load Side)
2 Wire
SLK Variation
Neutral
Minimum Wire Gauge
14 AWG

Description

Street Light Disconnect, Current 30 A, Disconnect Breakaway Breakaway, Disconnect Style Y-Tap, For Conductor Material Aluminum, Copper, Line Inputs 2, For Minimum Line Wire Size 14 AWG, For Maximum Line Wire Size 10 AWG, Load Outputs 2, For Minimum Load Wire Size 14 AWG, For Maximum Load Wire Size 10 AWG, Fused Non-Fused, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 600 V, Primary Connection Poles 2, Secondary Connection Poles 2, Termination Style Set Screw, Color Orange
