Shop IDEAL

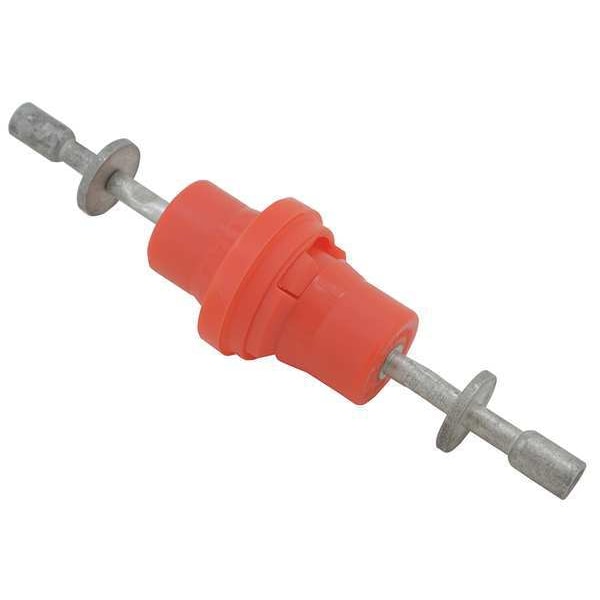

St Lght Dscnnct, NonBrkwy, Crimp, FusHldr

  • Mfr # 30-HC6

  • Zoro # G5575062

product price:
$
24.39
/ea

Key Features

Style
Fuse Holder
Insulation
Polypropylene
Breakaway/Non-Breakaway
Non-Breakaway
Primary Wire Range
6 to 14 AWG
Color
Orange
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
30-HC6
Zoro #
G5575062
UPC #
783250743049
Country of Origin
United States
Style
Fuse Holder
Item
Street Light Disconnect
Insulation
Polypropylene
Breakaway/Non-Breakaway
Non-Breakaway
Primary Wire Range
6 to 14 AWG
Color
Orange
Insulation Color
Orange
Connection Type
Crimp
Wire Range
2-14 AWG (Cu & Al rated)
Design
Fused
Secondary Wire Range
6 to 14 AWG
Max. Voltage
600V AC
Max. Temp.
105 Degrees C
Secondary Connections/Pole
1
Primary Connections/Pole
1
Connection Material
Tin-Plated Brass
Standards
UL 486D, UL Listed
Current
30 A
Fused
Fused
Termination Style
Crimp
Disconnect Style
Fuse Holder
Insulation Material
Polypropylene
Compatible with Product Type
Street Lights
For Conductor Material
Aluminum, Copper
Primary Connection Poles
1
Special Features
De-Energizes Roadway Lights, Streetlights, Parking Lot Lights and Other Freestanding Electrical Fixtures in the Event of a Knockdown or When Fixtures Need Maintenance, Helps Protect First Responders, Bystanders and Service Personnel From Potentially Life-Threatening Electrical Shock Hazards
Secondary Connection Poles
1
UL 94 Flammability Rating
V-2
Maximum Voltage
600 V
Contact Material
Brass
Disconnect Breakaway
Non-Breakaway
Compatible with Series
SLK
Maximum Operating Temperature
221 Degrees F
Load Outputs
1
Line Inputs
1
Contact Finish
Tin
Ratings
30A, 600V, 105°C
Minimum Wire Gauge
14 AWG
SLK Variation
Non-Breakaway
Street Light Kit Type
Fuseholdes (No Boot Included)
Maximum Rated Voltage
600V
Number of Wires (Load Side)
1 Wire
Number of Wires (Line Side)
1 Wire
SLK Type
Crimp
Maximum Wire Gauge
6 AWG
Series
SLK

Description

Street Light Disconnect, Current 30 A, Disconnect Breakaway Non-Breakaway, Disconnect Style Fuse Holder, For Conductor Material Aluminum, Copper, Line Inputs 1, For Minimum Line Wire Size 14 AWG, For Maximum Line Wire Size 6 AWG, Load Outputs 1, For Minimum Load Wire Size 14 AWG, For Maximum Load Wire Size 6 AWG, Fused Fused, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 600 V, Primary Connection Poles 1, Secondary Connection Poles 1, Termination Style Crimp, Color Orange
