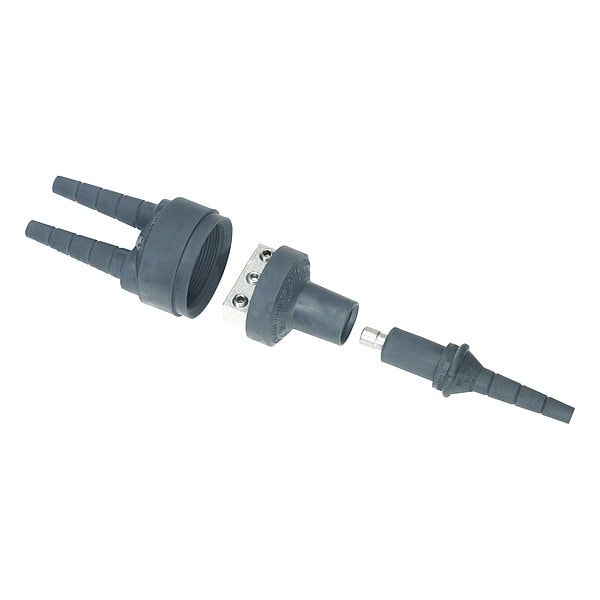

StreetLightDisconnect, NonFused, 2Input
- Mfr # 83S-ADB1-C
- Zoro # G722414526
product price:Â
$
82.25
/ea
Sold in multiples of 50 for
$4,112.50
Key Features
Termination Style
Set Screw/Crimp
For Maximum Line Wire Size
2 AWG
Disconnect Breakaway
Breakaway
Current
30 A
For Conductor Material
Aluminum, Copper
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 83S-ADB1-C
- Zoro #
- G722414526
- UPC #
- 781789110158
- Country of Origin
- United States
Dimensions
- For Maximum Line Wire Size
- 2 AWG
- For Minimum Line Wire Size
- 10 AWG
- For Maximum Load Wire Size
- 6 AWG
- For Minimum Load Wire Size
- 12 AWG
Details
- Termination Style
- Set Screw/Crimp
- Disconnect Breakaway
- Breakaway
- Current
- 30 A
- For Conductor Material
- Aluminum, Copper
- Special Features
- Built-In Breakaway Design Eliminates De-Energization of Complete Circuits and Safely Separates Upon Impact without Breaking Wires - Eliminates Potential Danger and Electrical Shock
- Line Inputs
- 2
- Series
- 83S
- Disconnect Style
- Y-Tap
- Color
- Black
- Fused
- Non-Fused
- Maximum Voltage
- 600 V
- Standards
- CSA
- Load Outputs
- 1
- Item
- Street Light Disconnect
- Wire Color
- Black
Description
Street Light Disconnect, Current 30 A, Disconnect Breakaway Breakaway, Disconnect Style Y-Tap, For Conductor Material Aluminum, Copper, Line Inputs 2, For Minimum Line Wire Size 10 AWG, For Maximum Line Wire Size 2 AWG, Load Outputs 1, For Minimum Load Wire Size 12 AWG, For Maximum Load Wire Size 6 AWG, Fused Non-Fused, Maximum Operating Temperature 167 Degrees F, Maximum Voltage 600 V, Termination Style Set Screw/Crimp, Color Black, UL 94 Flammability Rating Not Applicable, Standards CSA
