This item is Discontinued.

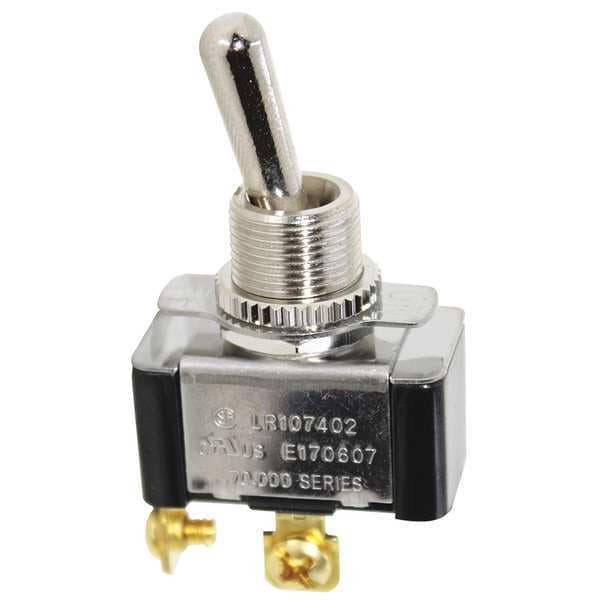

Ideal Toggle Switch, SPST, 10A @ 250V, Screw 774011

Toggle Switch, SPST, 10A @ 250V, Screw (Discontinued)

  • Mfr # 774011
  • Zoro # G0275116
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
774011
Zoro #
G0275116
UPC #
781789740119
Country of Origin
China

Dimensions

Actuator Length
0.75 in
Stem Dia. and Thread Size
15/32-32 NS-2B
Stem Length
0.5 in
Overall Height
0.61 in
Overall Depth
1.13 in
Overall Width
0.57 in
Mounting Hole Diameter
0.5 in
Stem Thread Size
15/32-32 NS-2A

Details

Item
Toggle Switch
Mounting Hole
0.50 in dia
Recommended Use
Power Tool and Motor Control Switch Applications
HP
3/4 hp
Stem Color
Silver
Actuator Color
Silver
Number of Connections
2
Terminals
Screw
AC Contact Rating
10 A @ 277 V, 20 A @ 125 V
Actuator Style
Bat
Special Features
Factory Tested 100,00 Cycles to 21A @ 14.8V DC
Standards
CSA, UL Listed
Contact Form
SPST
Operating Temp. Range
32 Degrees to 185 Degrees F
Includes
Faceplate
Switch Function
On/Off
DC Contact Rating
21 A @ 14.8 V
Product Type
Toggle Switch
Mechanical Life
100,000 cycles
Dielectric Strength
1500V
Operating Temperature
32°F to 185°F (0°C to 85°C)
DC Rating
Factory tested 100,000 cycles to 21 Amp 14.8 VDC
Switch Type
Toggle
Termination Style
Screw
Poles
SPST
VAC/VDC
AC
Terminal Connection Type
Screw Terminals
Number of Poles
1
Operating Temperature - Minimum
32 Degrees F
Switch Function Configuration
On/Off
Metal Actuator Finish
Nickel
Actuator Material
Metal
Operating Temperature - Maximum
185 Degrees F
Number of Positions
2
Horsepower
3/4 hp

Description

Toggle Switch, Contact Form SPST, Number of Connections 2, Switch Function On/Off, AC Contact Rating 10 A @ 277 V, 20 A @ 125 V, HP 3/4 hp, Terminals Screw, Mounting Hole 0.50 in dia, DC Contact Rating 21 A @ 14.8 V, Actuator Style Bat, Actuator Length 0.75 in, Stem Length 0.5 in, Stem Dia. and Thread Size 15/32-32 NS-2B, Operating Temp. Range 32 Degrees to 185 Degrees F, Actuator Color Silver, Stem Color Silver, Special Features Factory Tested 100,00 Cycles to 21A @ 14.8V DC
