  6. Twist On Wire Connector, 18 AWG to 10 AWG, 600 V, Wing Style, Yellow, 100 PK

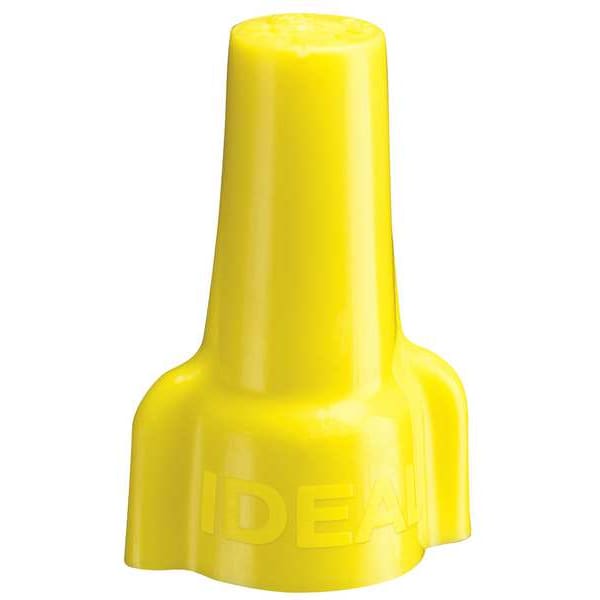

Ideal Twist On Wire Connector, 18 AWG to 10 AWG, 600 V, Wing Style, Yellow, 100 PK 30-451 - main

Twist On Wire Connector, 18 AWG to 10 AWG, 600 V, Wing Style, Yellow, 100 PK

  • Mfr # 30-451

  • Zoro # G3477984

product price:  $11.25
/pk 100, $0.11/ea

Key Features

Type
Twist-On
Minimum Wire Size
18 AWG
Insulation Material
Thermoplastic Polyester
Maximum Voltage
600 V
Minimum Wire Combination
(2) 18 AWG
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
30-451
Zoro #
G3477984
UPC #
783250304516
Country of Origin
United States

Dimensions

Maximum Wire Size
10 AWG
Minimum Wire Size
18 AWG
Height
1.06 in
Width
0.69 in
Outside Diameter
0.48 in
Strip Length
3/8 in
Overall Width
0.69 in
For Minimum Wire Size - Solid
18 AWG

Details

Item
Wire Connector
Type
Twist-On
Color
Yellow
Insulation Material
Thermoplastic Polyester
Maximum Voltage
600 V
Minimum Wire Combination
(2) 18 AWG
Maximum Wire Combination
(3) 12 AWG
Maximum Operating Temperature
221 Degrees F
UL 94 Flammability Rating
V-2
RoHS Compliant
Yes
Application
General Purpose
Standards
CSA Certified, UL Listed
Series
451
Maximum Conductors
4
For Conductor Material
Copper
Special Features
Copolymer Shell Expands for Smooth, Progressive Tightening Providing Dependable Connections, High-Leverage, Contoured Wing Design Provides Superior Torque on Every Twist, Removable for Repeat Usage, Wide Range, Live-Action Spring Handles Small Combinations and Expands to Accommodate Large Combinations
Material
Steel
Twist-On Style
Wing
Termination Style
Twist-On

Description

Twist-On Wire Connectors, Color Yellow, For Conductor Material Copper, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 600 V, Minimum Wire Combination (2) 18 AWG, Maximum Wire Combination (3) 12 AWG, Contact Finish Zinc, Contact Material Steel, UL 94 Flammability Rating V-2, Maximum Conductors 4, Standards CSA Certified, UL Listed, Wire Connector Style Wing, Fill Material Not Applicable, Insulation Material Polypropylene, Maximum Single Wire Size 10 AWG
