  11. Twist-On Wire Connector, 6 AWG Max, Gray, Polypropylene Insulation, 600 V, 50 PK

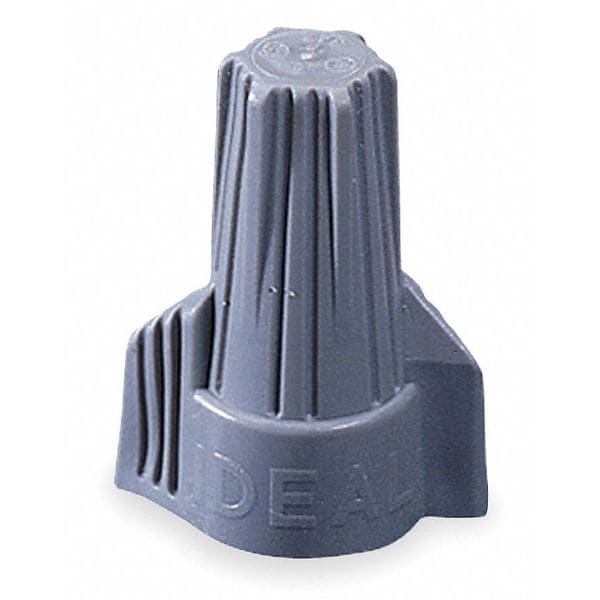

Ideal Twist-On Wire Connector, 6 AWG Max, Gray, Polypropylene Insulation, 600 V, 50 PK 30-342 - main

Twist-On Wire Connector, 6 AWG Max, Gray, Polypropylene Insulation, 600 V, 50 PK

  • Mfr # 30-342

  • Zoro # G1202686

product price: $17.59
/pk 50, $0.35/ea

Key Features

Type
Twist-On
Color
Gray
Minimum Wire Size
18 AWG
Insulation Material
Polypropylene
Maximum Voltage
600 V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
30-342
Zoro #
G1202686
UPC #
783250303427
Country of Origin
United States

Dimensions

Maximum Wire Size
6 AWG
Minimum Wire Size
18 AWG
Width
1.0 in
Height
1.3 in
Overall Width
1 in

Details

Item
Twist-On Wire Connector
Type
Twist-On
Color
Gray
Insulation Material
Polypropylene
Maximum Voltage
600 V
Minimum Wire Combination
(3) 14 AWG
Maximum Wire Combination
(2) 8 AWG with (2) 12 AWG
Maximum Operating Temperature
221 Degrees F
UL 94 Flammability Rating
V-2
Application
General Purpose
Series
342
Standards
CE Certified, CSA Certified, UL Listed
Maximum Conductors
6
For Conductor Material
Copper
Special Features
Comfortable Swept Wings Offer Extra Leverage and Less Effort on Large Wire Combinations, Durable Copolymer Shell Expands for Smooth, Progressive Tightening That Provides Dependable Connections, Expanding Square-Wire Spring Supports a Wide Range of Common Wiring Configurations, Quick Take-Up on Even the Toughest Combinations
Material
Steel
Twist-On Style
Wing
Termination Style
Twist-On

Description

Twist-On Wire Connectors, Color Gray, For Conductor Material Copper, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 600 V, Minimum Wire Combination (3) 14 AWG, Maximum Wire Combination (2) 8 AWG with (2) 12 AWG, Contact Finish Zinc, Contact Material Steel, UL 94 Flammability Rating V-2, Maximum Conductors 6, Standards CE, CSA Certified, UL Listed, Wire Connector Style Wing, Fill Material Not Applicable, Insulation Material Polypropylene, Maximum Single Wire Size 8 AWG
