  11. Twist-On Wire Connector, 8 AWG Max, Gray, Red, Thermoplastic Polyester Insulation, 600 V, 20 PK

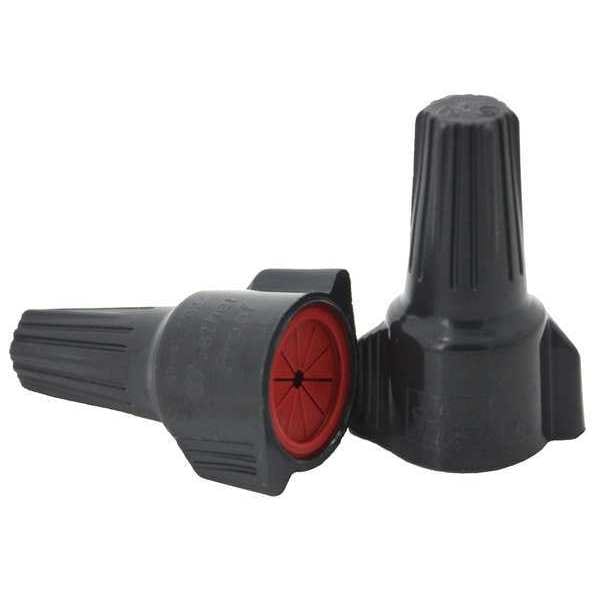

Ideal Twist-On Wire Connector, 8 AWG Max, Gray, Red, Thermoplastic Polyester Insulation, 600 V, 20 PK 30-1162P - main

Twist-On Wire Connector, 8 AWG Max, Gray, Red, Thermoplastic Polyester Insulation, 600 V, 20 PK

  • Mfr # 30-1162P

  • Zoro # G5240715

product price: $28.19
/pk 20, $1.41/ea

Key Features

Type
Twist-On
Color
Gray, Red
Minimum Wire Size
18 AWG
Insulation Material
Thermoplastic Polyester
Maximum Voltage
600 V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
30-1162P
Zoro #
G5240715
UPC #
783250756322
Country of Origin
China

Dimensions

Maximum Wire Size
8 AWG
Minimum Wire Size
18 AWG
Width
0.94 in
Height
1.34 in
Overall Width
0.94 in
Strip Length
1/2 in

Details

Item
Twist-On Wire Connector
Type
Twist-On
Color
Gray, Red
Insulation Material
Thermoplastic Polyester
Maximum Voltage
600 V
Minimum Wire Combination
(3) 18 AWG
Maximum Wire Combination
(2) 10 AWG with (1) 14 AWG
Maximum Operating Temperature
221 Degrees F
UL 94 Flammability Rating
V-2
Series
62
Standards
CE Certified, CSA Certified, UL Listed
Application
Wide Range
Fill Material
Silicone
Maximum Conductors
5
Special Features
Easy to Apply, Pre-Filled Twist-on Wire Connectors, Eliminates the Need for Heat-Shrink or Excessive Taping, Swept Wing Design is Built for Comfort and Efficiency
For Conductor Material
Copper
Material
Steel
Termination Style
Twist-On

Description

Twist-On Wire Connectors, Color Gray/Red, For Conductor Material Copper, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 600 V, Minimum Wire Combination (3) 18 AWG, Maximum Wire Combination (2) 10 AWG with (1) 14 AWG, Contact Finish Zinc, Contact Material Steel, UL 94 Flammability Rating V-2, Maximum Conductors 6, Standards CE, CSA Certified, UL Listed, Wire Connector Style Wing, Fill Material Silicone, Insulation Material Thermoplastic Polyester, Maximum Single Wire Size 12 AWG
