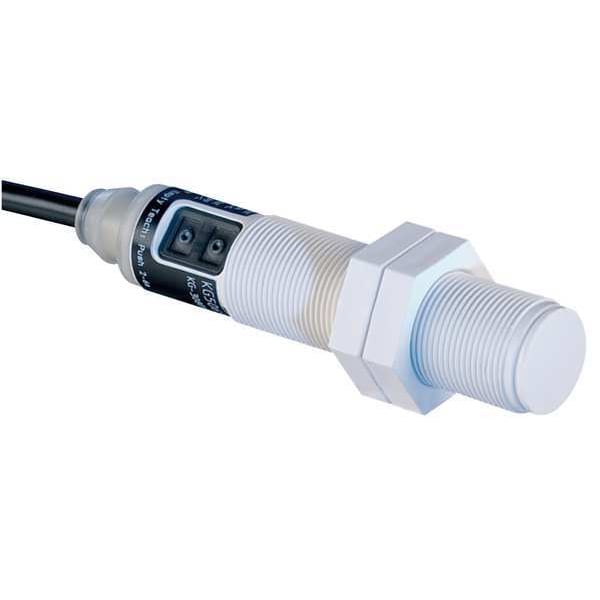

Capacitive, Cylindrical Proximity Sensor, 18 mm Dia., Polyethylene, 2 m, Bare Wire, 3 Wires, Unshielded

  • Mfr # KG5069

  • Zoro # G6625595

product price:  $114.99
/ea
Free Shipping & Returns

Key Features

Style
Capacitive, Cylindrical
Overall Diameter
18 mm
Proximity Sensing Method
Capacitive
Body Material
Polyethylene
Proximity Sensor Power Requirement
10 to 36V DC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
KG5069
Zoro #
G6625595
UPC #
094720822998
Country of Origin
Italy

Dimensions

Overall Diameter
18 mm
Cable Length
2 m
Length
88 mm
Dimensions [mm]
M18 x 1 / L = 77
Overall Height
77 mm

Details

Item
Proximity Sensor
Style
Capacitive, Cylindrical
Proximity Sensing Method
Capacitive
Body Material
Polyethylene
Proximity Sensor Power Requirement
10 to 36V DC
Electrical Connection
Bare Wire
Output Circuit Type
PNP
Output Circuit Number of Wires
3
Sensing Face Shielding
Unshielded
Sensing Distance - Maximum
8 mm
AC Voltage Rating
Not Rated
DC Voltage Rating
10-36V DC
Output Circuit Contact Form
NO/NC
Standards
EN 61000-4-2 ESD, EN 55011, EN 60068-2-6 FC, EN 61000-4-3 HF Radiated, EN 61000-4-4 Burst, EN 61000-4-6 HF Conducted
Proximity Sensor Electrical Connection
2m Cable
Proximity Sensor Operating Frequency
10 Hz
Includes
(2) Lock Nuts
Operating Temp. Range
-13 Degrees to 176 Degrees F
Description/Special Features
Overload And Short-Circuit Protection, Yellow LED Output Indication
IP Rating
IP65, IP67
Max. Current Load
200mA
Transmission type
COM1 (4,8 kBaud)
Display
switching status 1 x LED, yellow
Housing
threaded type
Connection
Cable: 2 m, PVC, Ø 4.9 mm; 3 x 0.34 mm²
Materials
housing: PP white; Sealing: TPE-U; pushbuttons: TPE-U
Items supplied
lock nuts: 2
MTTF [years]
653
Overload protection
yes
Mounting
non-flush mountable
Electronic lock
yes
Vibration resistance
EN 60068-2-6 Fc (10...55 Hz) / 1 mm amplitude, oscillation period 5 min., 30 min. per axis at resonance or 55 Hz
Sensing range [mm]
8
Current consumption [mA]
< 20
SIO mode
yes
Ambient temperature [°C]
-25...80
Hysteresis [% of Sr]
1...15
Thread designation
M18 x 1
SDCI standard
IEC 61131-9 CDV
Permanent current rating of switching output DC [mA]
200
Measuring principle
capacitive
Switching frequency DC [Hz]
10
Shock resistance
EN 60068-2-27 Ea 30 g 6 shocks / 11 ms half-sine (x, y, z)
EMC
EN 61000-4-2 ESD 8 kV AD EN 61000-4-3 HF radiated 10 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-6 HF conducted 3 V EN 55011 class B
Operating voltage [V]
10...36 DC
Reverse polarity protection
yes
Teach function
yes
Min. process cycle time [ms]
101
Max. voltage drop switching output DC [V]
2.5
Short-circuit proof
yes
Communication interface
IO-Link
Protection
IP 65; IP 67
Protection class
II
IO-Link revision
1.1
Profiles
Smart Sensor
Electrical design
PNP
Switch point drift [% of Sr]
-20...20
Measuring principle
capacitive
Ambient temperature [°C]
-25...80
Switching Frequency
10 Hz
Electrical Installation Type
Prewired Cable
Operating Temperature - Minimum
-13 Degrees F
Includes Indicator Lights
Indicator Lights Included
Sensing Method
Capacitive
Output Circuit Current - Maximum
200 mA
Operating Temperature - Maximum
176 Degrees F
Output Circuit Voltage - Maximum
2.5 V DC

Description

Capacitive Cylindrical Proximity Sensor, Capacitive, 18 mm, Proximity Sensor Power Requirement 10 to 36V DC, Unshielded, Proximity Sensor Operating Frequency 10 Hz, Proximity Sensor Output Circuit Type 3 Wire PNP, Max. Detecting Distance 8 mm, Proximity Sensor Electrical Connection 2m Cable, Output Mode NO/NC, IP Rating IP65, IP67, Case Material PP, Length 88 mm, Operating Temp. Range -13 Degrees to 176 Degrees F, Max. Current Load 200mA
