  11. Capacitive, Rectangular Proximity Sensor, PBT, 0.04 m, M8, Wires, Unshielded

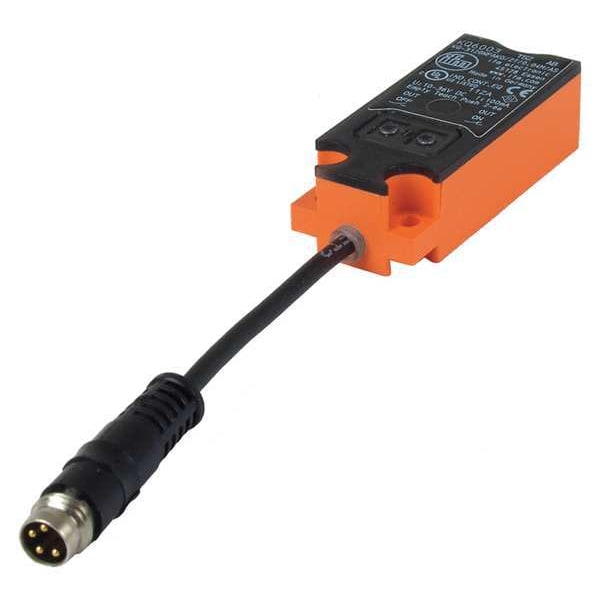

Ifm Capacitive, Rectangular Proximity Sensor, PBT, 0.04 m, M8, Wires, Unshielded KQ6003 - main

Capacitive, Rectangular Proximity Sensor, PBT, 0.04 m, M8, Wires, Unshielded

  • Mfr # KQ6003

  • Zoro # G7197696

product price: $101.99
/ea
Free Shipping & Returns

Key Features

Proximity Sensing Method
Capacitive
Proximity Sensor Power Requirement
10 to 30V DC
Length
48 mm
Width
20 mm
Depth
14 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
KQ6003
Zoro #
G7197696
UPC #
-
Country of Origin
Germany

Dimensions

Length
48 mm
Width
20 mm
Depth
14 mm
Overall Depth
14 mm
Overall Height
48 mm
Cable Length
0.04 m
Overall Width
20 mm

Details

Item
Proximity Sensor
Proximity Sensing Method
Capacitive
Proximity Sensor Power Requirement
10 to 30V DC
Proximity Sensor Electrical Connection
M8 Connector
Proximity Sensor Operating Frequency
10 Hz
Max. Current Load
100mA
Operating Temp. Range
-13 Degrees to 176 Degrees F
Standards
EN 61000-4-2 ESD, EN 55011, EN 60068-2-27, EN 61000-4-3 HF Radiated, EN 61000-4-4 Burst, EN 61000-4-6 HF Conducted, UL Listed
Description/Special Features
Short-Circuit and Overload Protection, Yellow LED Output Indication
IP Rating
IP65, IP67, IP69K
Electrical Connection
M8
Body Material
PBT
Output Circuit Voltage - Maximum
2.5 V DC
Number of Pins
4
Sensing Distance - Maximum
12 mm
Output Circuit Current - Maximum
100 mA
Style
Capacitive, Rectangular
Electrical Installation Type
Direct Connector
Sensing Face Shielding
Unshielded
Output Circuit Contact Form
NO/NC
Includes Indicator Lights
Indicator Lights Included
Operating Temperature - Minimum
-13 Degrees F
Operating Temperature - Maximum
176 Degrees F
AC Voltage Rating
Not Rated
Output Circuit Type
NPN and PNP
Switching Frequency
10 Hz
Features
Easy Installation
DC Voltage Rating
10-30V DC

Description

Capacitive Rectangular Proximity Sensor, Capacitive, Proximity Sensor Power Requirement 10 to 30V DC, Unshielded, Proximity Sensor Operating Frequency 10 Hz, Proximity Sensor Output Circuit Type PNP/NPN, Max. Detecting Distance 12 mm, Proximity Sensor Electrical Connection M8 Connector, Output Mode NO/NC, IP Rating IP65, IP67, IP69K, Case Material PBT, Length 48 mm, Operating Temp. Range -13 Degrees to 176 Degrees F, Max. Current Load 100mA
