  6. Capacitive, Rectangular Proximity Sensor, PBT, 2 m, Bare Wire, Wires, Unshielded

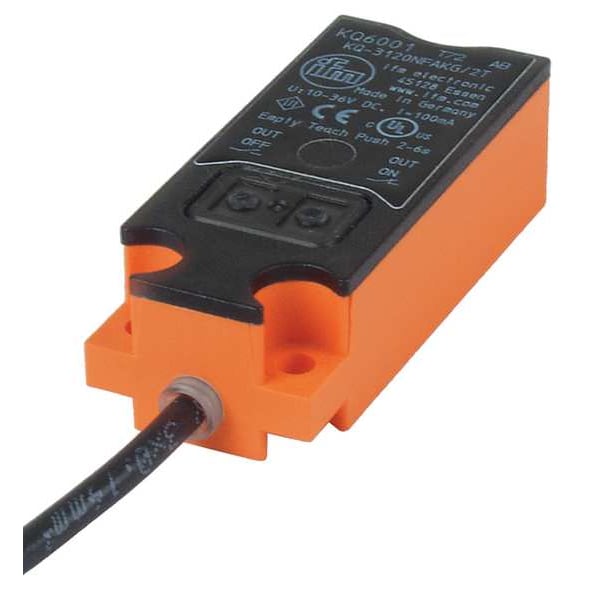

Ifm Capacitive, Rectangular Proximity Sensor, PBT, 2 m, Bare Wire, Wires, Unshielded KQ6001 - main

Capacitive, Rectangular Proximity Sensor, PBT, 2 m, Bare Wire, Wires, Unshielded

  • Mfr # KQ6001

  • Zoro # G6418632

product price:  $108.99
/ea
Free Shipping & Returns

Key Features

Style
Capacitive, Rectangular
Proximity Sensing Method
Capacitive
Body Material
PBT
Proximity Sensor Power Requirement
10 to 30V DC
Cable Length
2 m
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
KQ6001
Zoro #
G6418632
UPC #
094720801856
Country of Origin
Germany

Dimensions

Cable Length
2 m
Length
48 mm
Width
20 mm
Depth
14 mm
Dimensions [mm]
20 x 14 x 48
Overall Depth
14 mm
Overall Width
20 mm
Overall Height
48 mm

Details

Item
Proximity Sensor
Style
Capacitive, Rectangular
Proximity Sensing Method
Capacitive
Body Material
PBT
Proximity Sensor Power Requirement
10 to 30V DC
Electrical Connection
Bare Wire
Output Circuit Type
NPN and PNP
Sensing Face Shielding
Unshielded
Sensing Distance - Maximum
12 mm
AC Voltage Rating
Not Rated
DC Voltage Rating
10-30V DC
Output Circuit Contact Form
NO/NC
Standards
EN 61000-4-2 ESD, EN 55011, EN 60068-2-27, EN 61000-4-3 HF Radiated, EN 61000-4-4 Burst, EN 61000-4-6 HF Conducted, UL Listed
Proximity Sensor Electrical Connection
2m Cable
Proximity Sensor Operating Frequency
10 Hz
IP Rating
IP65, IP67, IP69K
Max. Current Load
100mA
Description/Special Features
Short-Circuit and Overload Protection, Yellow LED Output Indication
Operating Temp. Range
-13 Degrees to 176 Degrees F
Teach function
yes
SDCI standard
IEC 61131-9 CDV
Max. voltage drop switching output DC [V]
2.5
Profiles
Smart Sensor
Connection
Cable: 2 m, PVC; 3 x 0.14 mm²
Media
dry bulk material; liquids
Overload protection
yes
Installation
detection through non-metallic container wall or on bypass pipes
Reverse polarity protection
yes
Sensing range [mm]
12
Switching frequency DC [Hz]
10
UL approval
Ta -25...80°C Enclosure type Type 1 power supply Limited Voltage/Current
Electronic lock
yes
Electrical design
PNP/NPN; (automatic load detection PNP/NPN)
EMC
EN 61000-4-2 ESD 8 kV AD EN 61000-4-3 HF radiated 10 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-6 HF conducted 3 V EN 55011 class B
Protection
IP 65; IP 67; IP 69K
Real sensing range Sr [mm]
12± 10 %
Mounting
non-flush mountable
Measuring principle
capacitive
Vibration resistance
EN 60068-2-6 (10...55 Hz) / 1 mm amplitude, oscillation period 5 min., 30 min. per axis at resonance or 55 Hz
Type of short-circuit protection
pulsed
Permanent current rating of switching output DC [mA]
100
Ambient temperature [°C]
-25...80
MTTF [years]
623
Current consumption [mA]
< 17
Operating voltage [V]
10...30 DC
Materials
housing: PBT glass fibre reinforced; pushbuttons: TPE-U; cover: PC glass fibre reinforced
IO-Link revision
1.1
Display
switching status 1 x LED, yellow
Housing
rectangular
Transmission type
COM1 (4,8 kBaud)
Protection class
III
Communication interface
IO-Link
Hysteresis [% of Sr]
1...15
Shock resistance
EN 60068-2-27 30 g 6 shocks / 11 ms half-sine (x, y, z)
Switch point drift [% of Sr]
-20...20
Min. process cycle time [ms]
100.8
Short-circuit protection
yes
SIO mode
yes
Measuring principle
capacitive
Ambient temperature [°C]
-25...80
Electrical Installation Type
Prewired Cable
Output Circuit Current - Maximum
100 mA
Operating Temperature - Maximum
176 Degrees F
Operating Temperature - Minimum
-13 Degrees F
Switching Frequency
10 Hz
Output Circuit Voltage - Maximum
2.5 V DC
Includes Indicator Lights
Indicator Lights Included
Features
Easy Installation

Description

Capacitive Rectangular Proximity Sensor, Capacitive, Proximity Sensor Power Requirement 10 to 30V DC, Unshielded, Proximity Sensor Operating Frequency 10 Hz, Proximity Sensor Output Circuit Type PNP/NPN, Max. Detecting Distance 12 mm, Proximity Sensor Electrical Connection 2m Cable, Output Mode NO/NC, IP Rating IP65, IP67, IP69K, Case Material PBT, Length 48 mm, Operating Temp. Range -13 Degrees to 176 Degrees F, Max. Current Load 100mA
