Shop IFM

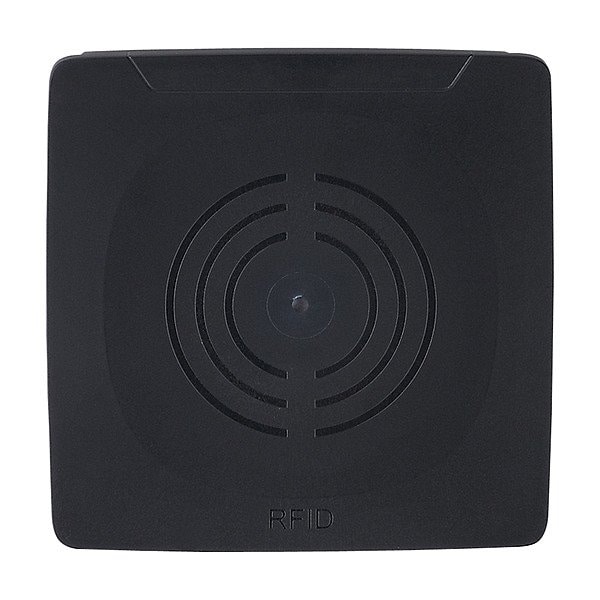

Compact UHF RFID device

  • Mfr # DTE901

  • Zoro # G216383741

product price:  $1,311.99
/ea
Free Shipping & Returns

Key Features

Product Type
Compact RFID Device
Communication Interface
Ethernet
Overall Length
118.6 mm
Electrical Connection - Voltage
5-Pin M12 A-Coding
Radio Approval for Countries
Canada, Mexico, USA
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
DTE901
Zoro #
G216383741
UPC #
-
Country of Origin
Mexico

Dimensions

Overall Length
118.6 mm
Overall Depth
50 mm
Overall Width
113 mm

Details

Item
Compact RFID Device
Product Type
Compact RFID Device
Communication Interface
Ethernet
Electrical Connection - Voltage
5-Pin M12 A-Coding
Radio Approval for Countries
Canada, Mexico, USA
Parameter Setting Protocol
TCP/IP
Transmission Power EIRP
200 mW
Minimum Operating Voltage
19.2 V DC
Frequency Type
Ultra-High Frequency
Data Transmission Protocol
PROFINET
Maximum Current Load Per Output
100 mA
Maximum Operating Voltage
28.8 V DC
Maximum Monitoring Range to Front of Write/Read Head
4,000 mm
Maximum Monitoring Distance to RFID Tag
1.9 m to E80393 ID tag
Maximum Operating Temperature
55 Degrees F
Number of Digital Ouputs
2
IP Rating
IP 67
Maximum Voltage Drop Switching Output
2 V DC
Current Consumption
500 mA
Minimum Operating Temperature
-4 Degrees F
Maximum Monitoring Range to Side of Write/Read Head
2,000 mm
Standards
EPC Class1 GEN2/ISO 18000-63
Operating Frequency
902 to 928 MHz
Compatible Frequency Range
Long Range
Electrical Connection - Ethernet
(2) 4-Pin M12 D Coding
Protection Class
III
Electrical Design
Push-Pull

Description

Compact UHF RFID device
