Shop All Sensor Cordsets & Receptacles
Ifm

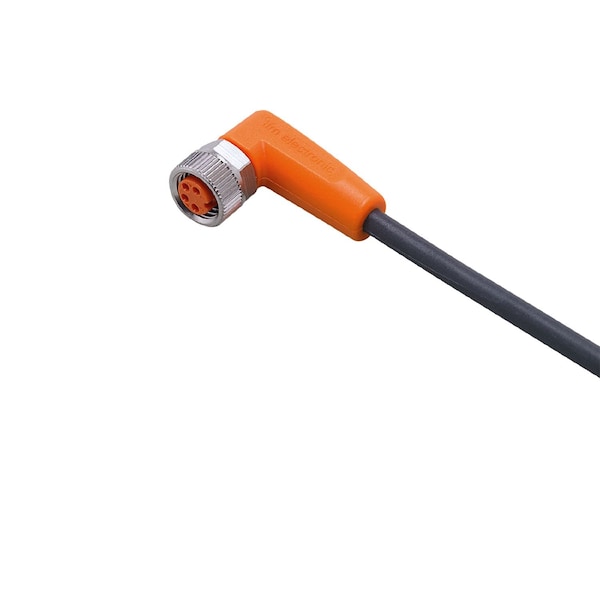

Cordset, 4 Pin, Receptacle, Female

original price: $30.80
26% off
new price: $22.49
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Cable Length 5 m
  • Jacket Color Black
  • End 1 Number of Pins 4
  • Max. Voltage 50 V AC, 60 V DC
  • End 1 Thread M8
See all product information

Product Information

Dimensions

Cable Length 5 m
Wire Size 22 AWG

Details

Item Cordset
Jacket Color Black
End 1 Number of Pins 4
Max. Voltage 50 V AC, 60 V DC
End 1 Thread M8
End 1 Connection Type M8
End 2 Connection Type Bare Wire
IP Rating IP65, IP67, IP68, IP69K
Standards cRUus Approval
End 1 Keyway Single
End 1 Gender and Plug End Female Right Angle
Number of Conductors 4
Max. Amps 3 A
Jacket Material TPU
Features Gold-Plated Contacts
Temp. Range -25 Degrees to 50 Degrees C
End 2 Gender and Plug End Bare Wire
End 1 Number of Keyways 1
Connector Type M8
End 1 Gender Female
Cable Jacket Material TPU
Number of Wires 4
End 1 Mounting Orientation Right Angle
Minimum Operating Temperature -13 Degrees F
Cable Jacket Color Black
Cordset Type Single-Ended
Cordset Configuration M8 Female Right Angle X Bare Wire
Maximum Operating Temperature 122 Degrees F

Description

Cordset, End 1 Gender Female, End 1 Thread M8, End 1 Number of Pins 4, End 1 Mounting Orientation Right Angle, End 1 Connection Type M8, End 2 Gender Not Applicable, End 2 Thread Not Applicable, End 2 Connection Type Bare Wire, Cable Length 5 m, Cable Jacket Color Black, Cable Jacket Material TPU, Max. Amps 3 A, Wire Size 22 AWG, Maximum Operating Temperature 122 Degrees F, Minimum Operating Temperature -13 Degrees F, IP Rating IP65, IP67, IP68, IP69K, Standards cRUus Approval
