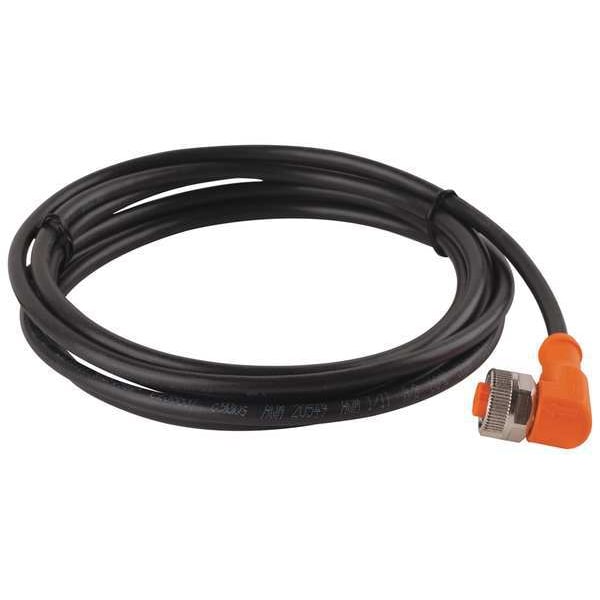

Cordset, 5 Pin, Receptacle, Female

  • Mfr # EVC004

  • Zoro # G8521073

product price:
$
12.75
/ea

Key Features

Product Type
Single Ended
End 1 Number of Pins
5
Wire Size
22 AWG
Cable Length
2 m
Cable Jacket Material
PUR
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
EVC004
Zoro #
G8521073
UPC #
-
Country of Origin
United States
Item
Cordset
Product Type
Single Ended
End 1 Number of Pins
5
Cable Jacket Material
PUR
Cable Jacket Color
Black
IP Rating
IP65, IP67, IP68, IP69K
Max. Amps
4 A
Maximum Operating Temperature
167 Degrees F
Max. Voltage
250 V AC, 300 V DC
Number of Conductors
4
End 2 Connection Type
Bare Wire
End 1 Thread
M12
End 1 Keyway
Single
End 1 Connection Type
M12
Features
Gold-Plated Contacts
Temp. Range
-25 Degrees to 90 Degrees C
Standards
cRUus Approval
End 1 Gender and Plug End
Female Right Angle
End 2 Gender and Plug End
Bare Wire
Color
Black
For Use With
Harsh Industrial Environment
End 1 Number of Keyways
1
Minimum Operating Temperature
-13 Degrees F
End 1 Mounting Orientation
Right Angle
Number of Wires
4
End 1 Gender
Female
Protection class
II
Other climatic conditions for storage according to stated class
1K22/ DIN 60721-3-1
Electrical connection
Cable: 2 m, PUR, Halogen-free, black, Ø 4.3 mm; 4 x 0.34 mm² (42 x Ø 0.1 mm )
Material nut
brass, nickel-plated
Sealing material
FKM
Special feature
Free from silicone; Halogen-free; Gold-plated contacts; Drag chain suitability
Storage temperature [°C]
-25...55
Max. current load total [A]
4
Operating voltage [V]
< 250 AC / < 300 DC
Connection
Connector: 1 x M12, angled; coding: A; Moulded body: TPU, orange; Locking: brass, nickel-plated; Sealing: FKM; Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm
Moulded-body material
TPU
Ambient temperature [°C]
-25...90
Ambient temperature (moving) [°C]
-25...90
Storage humidity [%]
10...100

Description

Cordset, End 1 Gender Female, End 1 Thread M12, End 1 Number of Pins 5, End 1 Mounting Orientation Right Angle, End 1 Connection Type M12, End 2 Gender Not Applicable, End 2 Thread Not Applicable, End 2 Connection Type Bare Wire, Cable Length 2 m, Cable Jacket Color Black, Cable Jacket Material PUR, Max. Amps 4 A, Wire Size 22 AWG, Maximum Operating Temperature 167 Degrees F, Minimum Operating Temperature -13 Degrees F, IP Rating IP65, IP67, IP68, IP69K, Standards cRUus Approval
