Shop All Sensor Cordsets & Receptacles
Ifm

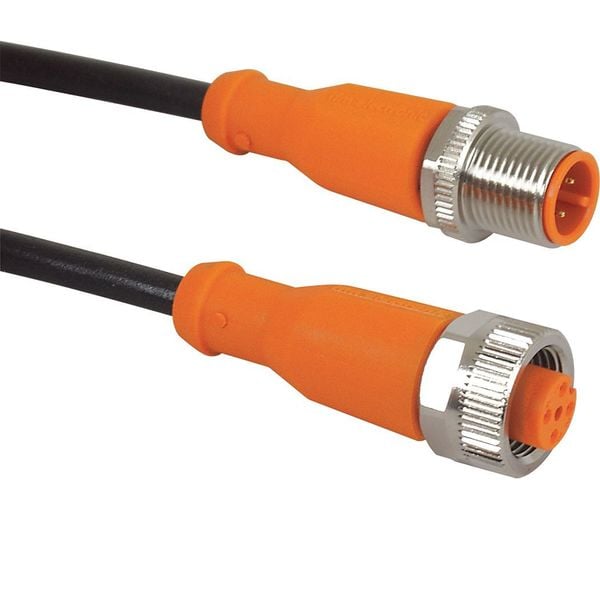

Cordset, 5 Pin, Receptacle, Female

product price: $23.29
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Cable Length 2 m
  • Jacket Color Black
  • End 1 Number of Pins 5
  • End 2 Number of Pins 4
  • Max. Voltage 250 V AC, 300 V DC
See all product information

Product Information

Dimensions

Cable Length 2 m
Wire Size 22 AWG

Details

Item Cordset
Jacket Color Black
End 1 Number of Pins 5
End 2 Number of Pins 4
Max. Voltage 250 V AC, 300 V DC
End 1 Thread M12
End 2 Thread M12
End 1 Connection Type M12
End 2 Connection Type M12
Features Gold-Plated Contacts
End 2 Gender and Plug End Male Straight
End 2 Keyway Single
Temp. Range -25 Degrees to 75 Degrees C
Standards cRUus Approval
End 1 Keyway Single
Jacket Material PUR
IP Rating IP65, IP67, IP68, IP69K
End 1 Gender and Plug End Female Straight
Max. Amps 4 A
Number of Conductors 4
End 2 Number of Keyways 1
End 1 Number of Keyways 1
End 2 Mounting Orientation Straight
Cable Jacket Color Black
Cable Jacket Material PUR
Minimum Operating Temperature -13 Degrees F
Cordset Configuration M12 Male Straight X M12 Female Straight
Maximum Operating Temperature 167 Degrees F
Connector Type M12
Cordset Type Double-Ended
End 1 Mounting Orientation Straight
Number of Wires 4
End 1 Gender Male
End 2 Gender Female
Material nut brass, nickel-plated
Protection class II
Special feature Free from silicone; Halogen-free; Gold-plated contacts; Drag chain suitability
Ambient temperature (moving) [°C] -25...90
Other climatic conditions for storage according to stated class 1K22/ DIN 60721-3-1
Ambient temperature [°C] -25...90
Protection IP 65; IP 67; IP 68; IP 69K
Connection Cable: 2 m, PUR, Halogen-free, black, Ø 4.3 mm; 4 x 0.34 mm² (42 x Ø 0.1 mm )
Storage temperature [°C] -25...55
Max. current load total [A] 4
Operating voltage [V] < 250 AC / < 300 DC
Materials housing: TPU orange; Sealing: FKM
Storage humidity [%] 10...100
Electrical connection Connector: 1 x M12, straight; coding: A; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm
Ambient temperature [°C] -25...90
Storage temperature [°C] -25...55
Ambient temperature (moving) [°C] -25...90

Description

Cordset, End 1 Gender Male, End 1 Thread M12, End 1 Number of Pins 5, End 1 Mounting Orientation Straight, End 1 Connection Type M12, End 2 Gender Female, End 2 Thread M12, End 2 Mounting Orientation Straight, End 2 Number of Pins 4, End 2 Connection Type M12, Cable Length 2 m, Cable Jacket Color Black, Cable Jacket Material PUR, Max. Amps 4 A, Wire Size 22 AWG, Maximum Operating Temperature 167 Degrees F, Minimum Operating Temperature -13 Degrees F, IP Rating IP65, IP67, IP68, IP69K
