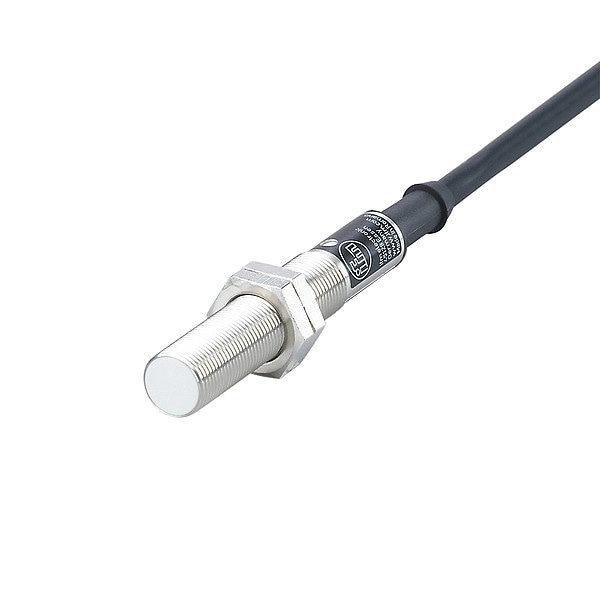

Cylindrical, Inductive Proximity Sensor, 12 mm Dia., Brass, 2 m, Bare Wire, 2 Wires, Shielded

  • Mfr # IF0303

  • Zoro # G7000917

product price:  $48.79
/ea

Key Features

Style
Cylindrical, Inductive
Overall Diameter
12 mm
Proximity Sensing Method
Inductive
Body Material
Brass
Proximity Sensor Power Requirement
20 to 250V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
IF0303
Zoro #
G7000917
UPC #
-
Country of Origin
Romania

Dimensions

Overall Diameter
12 mm
Cable Length
2 m
Length
92 mm
Dimensions [mm]
M12 x 1 / L = 71.5
Overall Height
72 mm

Details

Item
Proximity Sensor
Style
Cylindrical, Inductive
Proximity Sensing Method
Inductive
Body Material
Brass
Proximity Sensor Power Requirement
20 to 250V AC
Electrical Connection
Bare Wire
Output Circuit Type
AC-Type
Output Circuit Number of Wires
2
Sensing Face Shielding
Shielded
Sensing Distance - Maximum
2 mm
AC Voltage Rating
20-250V AC
DC Voltage Rating
Not Rated
Output Circuit Contact Form
NO
Standards
EN 61000-4-2 ESD, EN 55011, EN 61000-4-3 HF Radiated, EN 61000-4-4 Burst, EN 61000-4-6 HF Conducted
Proximity Sensor Electrical Connection
2m Cable
Proximity Sensor Operating Frequency
25 Hz
Max. Current Load
250mA
Includes
(2) Lock Nuts
Description/Special Features
Red LED Output Indication
IP Rating
IP67
Operating Temp. Range
-13 Degrees to 158 Degrees F
Protection
IP 67
Thread designation
M12 x 1
Operating voltage [V]
20...250 AC
Correction factor
steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.3 / copper: 0.2
Operating distance [mm]
0...1.62
Frequency AC [Hz]
45...65
Items supplied
lock nuts: 2
MTTF [years]
932
Hysteresis [% of Sr]
3...15
Display
switching status 1 x LED, red
Minimum load current [mA]
8
Short-time current rating of switching output [mA]
900; (20 ms / 0,5 Hz)
Max. voltage drop switching output AC [V]
8.5
Protection class
II
Sensing range [mm]
2
Reverse polarity protection
no
Real sensing range Sr [mm]
2± 10 %
Permanent current rating of switching output AC [mA]
200; (250 (...50°C))
Connection
Cable: 2 m, PVC; 2 x 0.5 mm²
Tightening torque [Nm]
A = 4 mm: 3,5 Nm; B: 5 Nm
Short-circuit proof
no
Ambient temperature [°C]
-25...80
Materials
housing: brass white bronze coated; sensing face: PBT natural; Nuts: brass white bronze coated; cable entry: TPE-E; LED window: PBT natural
Mounting
flush mountable
Required protection
miniature fuse to IEC60127-2 sheet 1; ≤2 A; fast acting
EMC
EN 61000-4-2 ESD 4 kV CD / 8 kV AD EN 61000-4-3 HF radiated 3 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-6 HF conducted 3 V EN 55011 class B
Switching frequency AC [Hz]
25
Max. leakage current [mA]
2
Switch point drift [% of Sr]
-10...10
Housing
threaded type
Overload protection
no
Ambient temperature [°C]
-25...80
Operating Temperature - Minimum
-13 Degrees F
Output Circuit Voltage - Maximum
8.5 V AC
Operating Temperature - Maximum
176 Degrees F
Sensing Method
Inductive
Includes Indicator Lights
Indicator Lights Included
Switching Frequency
25 Hz
Body Finish
Bronze Coated
Electrical Installation Type
Prewired Cable
Output Circuit Current - Maximum
200 mA

Description

Inductive Cylindrical Proximity Sensor, Inductive, 12 mm, Proximity Sensor Power Requirement 20 to 250V AC, Shielded, Proximity Sensor Operating Frequency 25 Hz, Proximity Sensor Output Circuit Type 2 Wire, Max. Detecting Distance 2 mm, Proximity Sensor Electrical Connection 2m Cable, Output Mode NO, IP Rating IP67, Case Material Brass White Bronze Coated, Length 92 mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 250mA
