  11. Cylindrical, Inductive Proximity Sensor, 12 mm Dia., Brass, M12, 2 Wires, Shielded

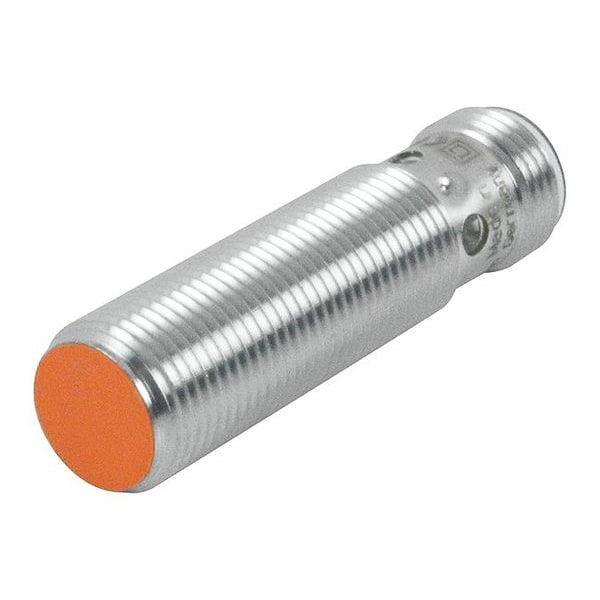

Ifm Cylindrical, Inductive Proximity Sensor, 12 mm Dia., Brass, M12, 2 Wires, Shielded IFS200 - main

Cylindrical, Inductive Proximity Sensor, 12 mm Dia., Brass, M12, 2 Wires, Shielded

  • Mfr # IFS200

  • Zoro # G9990093

product price: $46.69
/ea

Key Features

Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
10 to 30V DC
Length
45 mm
Proximity Sensor Electrical Connection
4 Pin M12 Connector
Proximity Sensor Operating Frequency
700 Hz
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
IFS200
Zoro #
G9990093
UPC #
-
Country of Origin
Romania

Dimensions

Length
45 mm
Dimensions [mm]
M12 x 1 / L = 45
Overall Diameter
12 mm
Overall Height
45 mm

Details

Item
Proximity Sensor
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
10 to 30V DC
Proximity Sensor Electrical Connection
4 Pin M12 Connector
Proximity Sensor Operating Frequency
700 Hz
Operating Temp. Range
-13 Degrees to 167 Degrees F
Max. Current Load
100mA
Includes
(2) Lock Nuts
IP Rating
IP67
Standards
EN 61000-4-2 ESD, EN 55011, EN 61000-4-3 HF Radiated, EN 61000-4-4 Burst, EN 61000-4-6 HF Conducted, UL E174191, UL Listed
Electrical Connection
M12
Mounting
flush mountable
Ambient temperature [°C]
-25...70
Materials
brass white bronze coated; sensing face: PBT
Application
Industrial applications / factory automation
Increased sensing range
yes
Protection
IP 67
Hysteresis [% of Sr]
3...15
UL approval
Ta 0...40°C Enclosure type Type 1 power supply Hazardous voltage File number UL E174191
Max. voltage drop switching output DC [V]
2.5
Connection
Connector: 1 x M12; coding: A; Contacts: gold-plated
Real sensing range Sr [mm]
4± 10 %
Overload protection
yes
Special feature
Gold-plated contacts; Increased sensing range
Switch point drift [% of Sr]
-10...10
Protection class
II
EMC
EN 61000-4-2 ESD 4 kV CD / 8 kV AD EN 61000-4-3 HF radiated 10 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-6 HF conducted 10 V EN 55011 class B
MTTF [years]
2487
Housing
threaded type
Operating distance [mm]
0...3.25
Display
switching status 4 x 90° LED, yellow
Permanent current rating of switching output DC [mA]
100
Sensing range [mm]
4
Operating voltage [V]
10...30 DC
Switching frequency DC [Hz]
700
Minimum load current [mA]
2
Short-circuit protection
yes
Thread designation
M12 x 1
Max. leakage current [mA]
0.5
Correction factor
steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3
Type of short-circuit protection
pulsed
Reverse polarity protection
yes
Items supplied
lock nuts: 2
Electrical design
PNP/NPN
Ambient temperature [°C]
-25...70
Body Finish
Bronze Coated
Number of Pins
4
Body Material
Brass
Operating Temperature - Minimum
-13 Degrees F
AC Voltage Rating
Not Rated
Electrical Installation Type
Direct Connector
Includes Indicator Lights
Indicator Lights Included
Output Circuit Voltage - Maximum
2.5 V DC
Sensing Distance - Maximum
4 mm
Output Circuit Contact Form
NO
Style
Cylindrical, Inductive
Output Circuit Number of Wires
2
Switching Frequency
700 Hz
Operating Temperature - Maximum
158 Degrees F
DC Voltage Rating
10-30V DC
Output Circuit Type
NPN/PNP
Output Circuit Current - Maximum
100 mA
Sensing Face Shielding
Shielded

Description

Inductive Cylindrical Proximity Sensor, Inductive, 12 mm, Proximity Sensor Power Requirement 10 to 30V DC, Shielded, Proximity Sensor Operating Frequency 700 Hz, Proximity Sensor Output Circuit Type 2 Wire PNP/NPN, Max. Detecting Distance 4 mm, Proximity Sensor Electrical Connection 4 Pin M12 Connector, Output Mode NO, IP Rating IP67, Case Material Brass White Bronze Coated, Length 45 mm, Operating Temp. Range -13 Degrees to 167 Degrees F, Max. Current Load 100mA
