  11. Cylindrical, Inductive Proximity Sensor, 12 mm Dia., Brass, M12, 3 Wires, Shielded

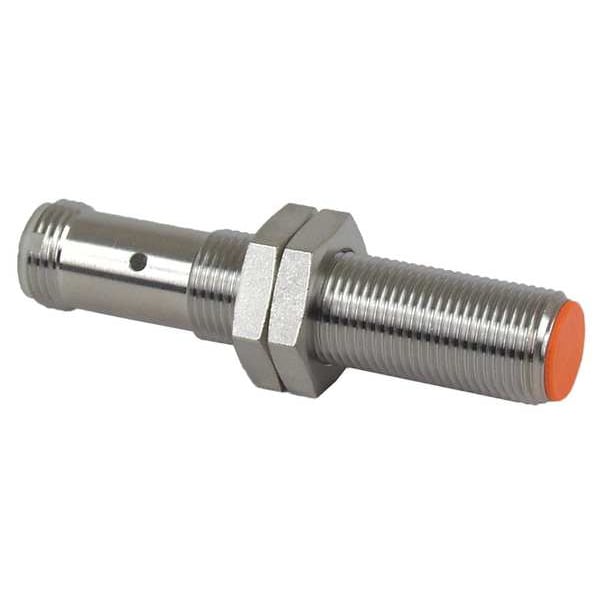

Ifm Cylindrical, Inductive Proximity Sensor, 12 mm Dia., Brass, M12, 3 Wires, Shielded IF7102 - main

Cylindrical, Inductive Proximity Sensor, 12 mm Dia., Brass, M12, 3 Wires, Shielded

  • Mfr # IF7102

  • Zoro # G7557767

product price: $35.69
/ea

Key Features

Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
15 to 30V DC
Length
60 mm
Proximity Sensor Electrical Connection
4 Pin M12 Connector
Proximity Sensor Operating Frequency
800 Hz
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
IF7102
Zoro #
G7557767
UPC #
-
Country of Origin
Germany

Dimensions

Length
60 mm
Dimensions [mm]
M12 x 1 / L = 60
Overall Height
60 mm
Overall Diameter
12 mm

Details

Item
Proximity Sensor
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
15 to 30V DC
Proximity Sensor Electrical Connection
4 Pin M12 Connector
Proximity Sensor Operating Frequency
800 Hz
Operating Temp. Range
-13 Degrees to 158 Degrees F
Description/Special Features
Overload And Short-Circuit Protection, Yellow LED Output Indication
Includes
(2) Lock Nuts
Max. Current Load
100mA
Standards
EN 61000-4-2 ESD, EN 55011, EN 61000-4-3 HF Radiated, EN 61000-4-4 Burst, EN 61000-4-6 HF Conducted, UL E174191, UL A001
IP Rating
IP67
Electrical Connection
M12
Real sensing range Sr [mm]
2± 10 %
Sensing range [mm]
2
Operating voltage [V]
10...30 DC
Max. voltage drop switching output DC [V]
2.5
Correction factor
steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3
Protection
IP 67
Thread designation
M12 x 1
Switch point drift [% of Sr]
-10...10
Mounting
flush mountable
Protection class
III
Housing
threaded type
Embedded software included
yes
Reverse polarity protection
yes
Operating distance [mm]
0...1.62
Hysteresis [% of Sr]
3...15
Connection
Connector: 1 x M12; coding: A; Contacts: gold-plated
Electrical design
NPN
Special feature
Gold-plated contacts
Items supplied
lock nuts: 2
Ambient temperature [°C]
-25...70
MTTF [years]
1455
Switching frequency DC [Hz]
700
Short-circuit protection
yes
Display
switching status 1 x LED, yellow
EMC
EN 61000-4-2 ESD 4 kV CD / 8 kV AD EN 61000-4-3 HF radiated 10 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-6 HF conducted 3 V EN 55011 class B
Permanent current rating of switching output DC [mA]
100
Current consumption [mA]
< 10
Materials
brass white bronze coated; sensing face: PBT orange; LED window: PEI; lock nuts: brass white bronze coated
Overload protection
yes
UL approval
Ta -25...70°C Enclosure type Type 1 power supply Limited Voltage/Current UL Approval no. A001 File number UL E174191
Ambient temperature [°C]
-25...70
Operating Temperature - Minimum
-13 Degrees F
Body Material
Brass
Sensing Distance - Maximum
2 mm
Output Circuit Contact Form
NO
Output Circuit Current - Maximum
100 mA
Switching Frequency
700 Hz
Operating Temperature - Maximum
158 Degrees F
DC Voltage Rating
10-30V DC
Output Circuit Number of Wires
3
Electrical Installation Type
Direct Connector
Number of Pins
4
Sensing Face Shielding
Shielded
Output Circuit Voltage - Maximum
2.5 V DC
AC Voltage Rating
Not Rated
Style
Cylindrical, Inductive
Includes Indicator Lights
Indicator Lights Included
Output Circuit Type
NPN
Body Finish
Bronze Coated

Description

Inductive Cylindrical Proximity Sensor, Inductive, 12 mm, Proximity Sensor Power Requirement 15 to 30V DC, Shielded, Proximity Sensor Operating Frequency 800 Hz, Proximity Sensor Output Circuit Type 3 Wire NPN, Max. Detecting Distance 2 mm, Proximity Sensor Electrical Connection 4 Pin M12 Connector, Output Mode NO, IP Rating IP67, Case Material Nickel Plated Brass, Length 60 mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 100mA
