  11. Cylindrical, Inductive Proximity Sensor, 12 mm Dia., Brass/PBT, 1/2 in Connector, 2 Wires, Unshielded

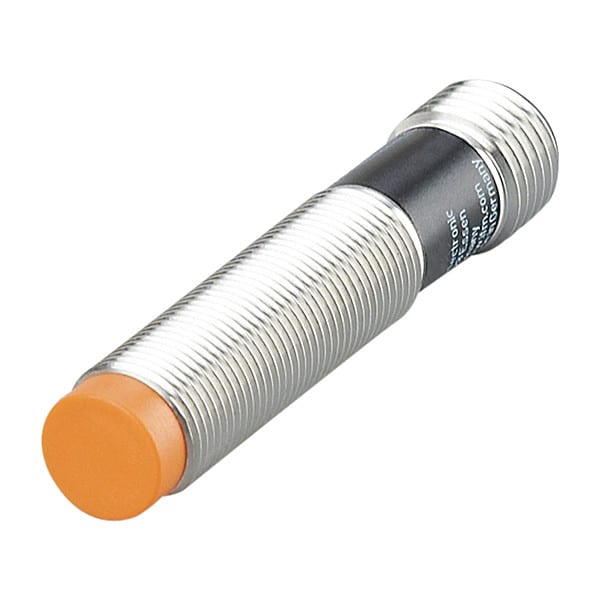

Ifm Cylindrical, Inductive Proximity Sensor, 12 mm Dia., Brass/PBT, 1/2 in Connector, 2 Wires, Unshielded IF0312 - main

Cylindrical, Inductive Proximity Sensor, 12 mm Dia., Brass/PBT, 1/2 in Connector, 2 Wires, Unshielded

  • Mfr # IF0312

  • Zoro # G7517632

product price: $62.49
/ea

Key Features

Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
20 to 140V AC/DC
Length
62 mm
Proximity Sensor Electrical Connection
3 Pin 1/2-20 UNF Male Connector
Proximity Sensor Operating Frequency
25 Hz AC/90 Hz DC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
IF0312
Zoro #
G7517632
UPC #
094720839200
Country of Origin
Romania

Dimensions

Length
62 mm
Dimensions [mm]
M12 x 1
Overall Diameter
12 mm
Overall Height
62 mm

Details

Item
Proximity Sensor
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
20 to 140V AC/DC
Proximity Sensor Electrical Connection
3 Pin 1/2-20 UNF Male Connector
Proximity Sensor Operating Frequency
25 Hz AC/90 Hz DC
Includes
(2) Lock Nuts
Standards
EN 60947-5-2, EN 55011, UL E174191, UL Listed
Description/Special Features
Red LED Output Indication
Operating Temp. Range
-13 Degrees to 158 Degrees F
IP Rating
IP67
Max. Current Load
200mA
Electrical Connection
1/2 in Connector
Protection class
I
Short-time current rating of switching output [mA]
900; (20 ms / 0,5 Hz)
Permanent current rating of switching output DC [mA]
200
Switching frequency DC [Hz]
90
Items supplied
lock nuts: 2
Minimum load current [mA]
5
Correction factor
steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.3 / copper: 0.2
Hysteresis [% of Sr]
3...15
Max. voltage drop switching output AC [V]
5
Increased sensing range
yes
Display
switching status 1 x LED, red
Housing
threaded type
Switching frequency AC [Hz]
25
Operating voltage [V]
20...140 AC / 10...140 DC
Frequency AC [Hz]
47...63
Reverse polarity protection
no
Max. voltage drop switching output DC [V]
5
Permanent current rating of switching output AC [mA]
200
Thread designation
M12 x 1
Required protection
miniature fuse to IEC60127-2 sheet 1; ≤2 A; fast acting
EMC
EN 60947-5-2 EN 55011 class B
Special feature
Increased sensing range
Sensing range [mm]
7
Ambient temperature [°C]
-25...70
Operating distance [mm]
0...5.7
Mounting
non-flush mountable
Protection
IP 67
Materials
brass white bronze coated; PBT
Short-circuit proof
no
Overload protection
no
UL approval
Ta 0...40°C Enclosure type Type 1 power supply Hazardous voltage File number UL E174191
MTTF [years]
1684
Max. leakage current [mA]
0.8
Ambient temperature [°C]
-25...70
Output Circuit Current - Maximum
200 mA
Number of Pins
3
Sensing Distance - Maximum
7 mm
AC Voltage Rating
20-140V AC
Body Finish
Bronze Coated
Switching Frequency
25 Hz (AC), 90 Hz (DC)
Operating Temperature - Minimum
-13 Degrees F
Operating Temperature - Maximum
158 Degrees F
Body Material
Brass/PBT
Includes Indicator Lights
Indicator Lights Included
Style
Cylindrical, Inductive
Output Circuit Type
AC/DC-Type
DC Voltage Rating
10-140V DC
Electrical Installation Type
Direct Connector
Sensing Face Shielding
Unshielded
Output Circuit Contact Form
NO
Output Circuit Number of Wires
2
Output Circuit Voltage - Maximum
5 V DC

Description

Inductive Cylindrical Proximity Sensor, Inductive, 12 mm, Proximity Sensor Power Requirement 20 to 140V AC/DC, Unshielded, Proximity Sensor Operating Frequency 25 Hz AC/90 Hz DC, Proximity Sensor Output Circuit Type 2 Wire, Max. Detecting Distance 7 mm, Proximity Sensor Electrical Connection 3 Pin 1/2-20 UNF Male Connector, Output Mode NO, IP Rating IP67, Case Material Brass White Bronze Coated, Length 62 mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 200mA
