  11. Cylindrical, Inductive Proximity Sensor, 12 mm Dia., Brass/PC, 2 m, Bare Wire, 2 Wires, Shielded

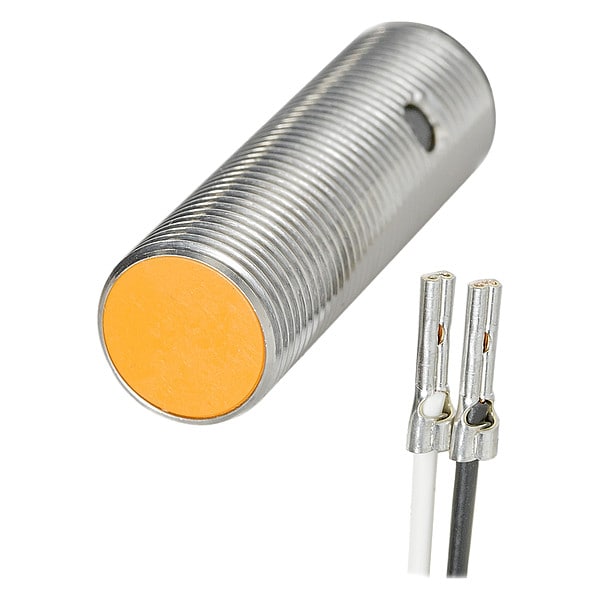

Ifm Cylindrical, Inductive Proximity Sensor, 12 mm Dia., Brass/PC, 2 m, Bare Wire, 2 Wires, Shielded IF5720 - main

Cylindrical, Inductive Proximity Sensor, 12 mm Dia., Brass/PC, 2 m, Bare Wire, 2 Wires, Shielded

  • Mfr # IF5720

  • Zoro # G7484872

product price: $39.99
/ea

Key Features

Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
10 to 36V DC
Length
42 mm
Proximity Sensor Electrical Connection
2m Cable
Proximity Sensor Operating Frequency
1,200 Hz
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
IF5720
Zoro #
G7484872
UPC #
-
Country of Origin
Romania

Dimensions

Length
42 mm
Dimensions [mm]
M12 x 1 / L = 40
Cable Length
2 m
Overall Height
40 mm
Overall Diameter
12 mm

Details

Item
Proximity Sensor
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
10 to 36V DC
Proximity Sensor Electrical Connection
2m Cable
Proximity Sensor Operating Frequency
1,200 Hz
Standards
EN 60947-5-2, EN 55011
Includes
(2) Lock Nuts
Description/Special Features
Overload And Short-Circuit Protection, Yellow LED Output Indication
IP Rating
IP67
Max. Current Load
150mA
Operating Temp. Range
-13 Degrees to 158 Degrees F
Electrical Connection
Bare Wire
Switch point drift [% of Sr]
-10...10
Thread designation
M12 x 1
Items supplied
lock nuts: 2
Protection class
II
Materials
brass white bronze coated; PC
Hysteresis [% of Sr]
1...15
Housing
threaded type
Switching frequency DC [Hz]
1200
Reverse polarity protection
yes
Overload protection
yes
EMC
EN 60947-5-2 EN 55011 class B
Connection
Cable: 2 m, PVC; 2 x 0.34 mm²
Electrical design
PNP/NPN
Max. leakage current [mA]
0.6
Type of short-circuit protection
pulsed
Operating distance [mm]
0...1.6
Real sensing range Sr [mm]
2± 10 %
Short-circuit protection
yes
Operating voltage [V]
10...36 DC
Correction factor
steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.3 / copper: 0.2
Sensing range [mm]
2
Minimum load current [mA]
4
Display
switching status 1 x LED, yellow
Mounting
flush mountable
Protection
IP 67
Max. voltage drop switching output DC [V]
4.6
MTTF [years]
2744
Ambient temperature [°C]
-25...80
Permanent current rating of switching output DC [mA]
150
Ambient temperature [°C]
-25...80
Electrical Installation Type
Prewired Cable
Output Circuit Current - Maximum
150 mA
Output Circuit Voltage - Maximum
4.6 V DC
Operating Temperature - Minimum
-13 Degrees F
Output Circuit Type
NPN/PNP
Body Material
Brass/PC
Output Circuit Number of Wires
2
Switching Frequency
1,200 Hz
Body Finish
Bronze Coated
Sensing Distance - Maximum
2 mm
DC Voltage Rating
10-36V DC
AC Voltage Rating
Not Rated
Sensing Face Shielding
Shielded
Operating Temperature - Maximum
176 Degrees F
Style
Cylindrical, Inductive
Includes Indicator Lights
Indicator Lights Included
Output Circuit Contact Form
NO

Description

Inductive Cylindrical Proximity Sensor, Inductive, 12 mm, Proximity Sensor Power Requirement 10 to 36V DC, Shielded, Proximity Sensor Operating Frequency 1,200 Hz, Proximity Sensor Output Circuit Type 2 Wire PNP/NPN, Max. Detecting Distance 2 mm, Proximity Sensor Electrical Connection 2m Cable, Output Mode NO, IP Rating IP67, Case Material Brass White Bronze Coated, Length 42 mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 150mA
