  6. Cylindrical, Inductive Proximity Sensor, 12 mm Dia., Stainless Steel, M12, Wires, Shielded

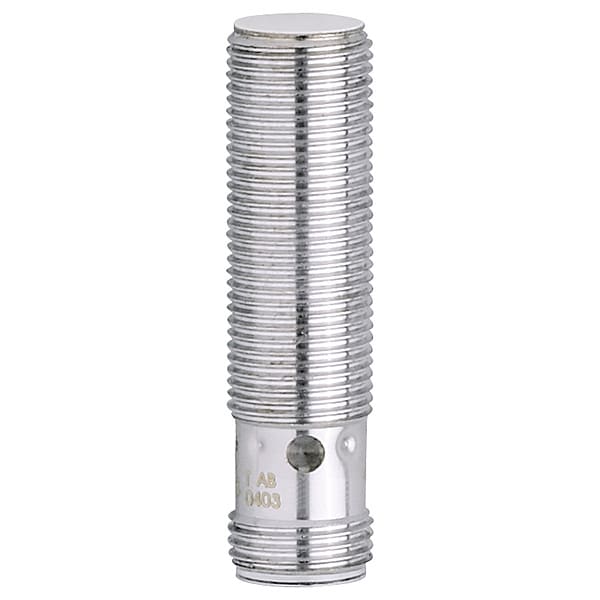

Ifm Cylindrical, Inductive Proximity Sensor, 12 mm Dia., Stainless Steel, M12, Wires, Shielded IFT203 - main

Cylindrical, Inductive Proximity Sensor, 12 mm Dia., Stainless Steel, M12, Wires, Shielded

  • Mfr # IFT203

  • Zoro # G107877656

product price:  $132.99
/ea
Free Shipping & Returns

Key Features

Style
Cylindrical, Inductive
Overall Diameter
12 mm
Proximity Sensing Method
Inductive
Body Material
Stainless Steel
Proximity Sensor Power Requirement
10 to 36 V DC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
IFT203
Zoro #
G107877656
UPC #
-
Country of Origin
Romania

Dimensions

Overall Diameter
12 mm
Length
45 mm
Dimensions [mm]
M12 x 1 / L = 45
Overall Height
45 mm

Details

Item
Proximity Sensor
Style
Cylindrical, Inductive
Proximity Sensing Method
Inductive
Body Material
Stainless Steel
Proximity Sensor Power Requirement
10 to 36 V DC
Electrical Connection
M12
Output Circuit Type
PNP
Sensing Face Shielding
Shielded
Sensing Distance - Maximum
4 mm
AC Voltage Rating
Not Rated
DC Voltage Rating
10-30V DC
Output Circuit Contact Form
NO
Standards
EN 61000-4-2 ESD, EN 55011, EN 61000-4-3 HF Radiated, EN 61000-4-4 Burst, EN 61000-4-6 HF Conducted, UL E174191, UL Listed
Proximity Sensor Electrical Connection
M12 Connector
Proximity Sensor Operating Frequency
800 Hz
IP Rating
IP68, IP69K
Includes
(2) Lock Nuts
Operating Temp. Range
0 Degrees to 100 Degrees C
Description/Special Features
Gold Plated Contacts, Increased Sensing Range
Short-circuit protection
yes
Increased sensing range
yes
Housing
threaded type
Max. voltage drop switching output DC [V]
2.5
Overload protection
yes
Protection class
II
Reverse polarity protection
yes
Operating distance [mm]
0...3.25
Ambient temperature [°C]
0...100
Correction factor
steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3
Permanent current rating of switching output DC [mA]
100
Current consumption [mA]
10; (24 V)
Type of short-circuit protection
pulsed
Connection
Connector: 1 x M12; coding: A; Contacts: gold-plated
MTTF [years]
1676
Electrical design
PNP
Sensing range [mm]
4
Mounting
flush mountable
Switching frequency DC [Hz]
800
EMC
EN 61000-4-2 ESD 4 kV CD / 8 kV AD EN 61000-4-3 HF radiated 10 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-6 HF conducted 10 V EN 55011 class B
UL approval
Ta 0...40°C Enclosure type Type 1 power supply Limited Voltage/Current File number UL E174191
Thread designation
M12 x 1
Operating voltage [V]
10...36 DC
Special feature
Gold-plated contacts; Increased sensing range
Hysteresis [% of Sr]
1...20
Display
switching status 4 x 90° LED, yellow
Materials
threaded sleeve: stainless steel (1.4404 / 316L); sensing face: PEEK; lock nuts: stainless steel
Items supplied
lock nuts: 2
Application
regular cleaning processes
Protection
IP 68; IP 69K; ("COP")
Ambient temperature [°C]
0...100
Output Circuit Voltage - Maximum
2.5 V DC
Operating Temperature - Maximum
212 Degrees F
Output Circuit Current - Maximum
100 mA
Body Stainless Steel Grade
316L
Includes Indicator Lights
Indicator Lights Included
Electrical Installation Type
Direct Connector
Switching Frequency
800 Hz
Number of Pins
3
Operating Temperature - Minimum
32 Degrees F

Description

Inductive Cylindrical Proximity Sensor, Inductive, 12 mm, Proximity Sensor Power Requirement 10 to 36 V DC, Proximity Sensor Operating Frequency 800 Hz, Proximity Sensor Output Circuit Type PNP, Max. Detecting Distance 4 mm, Proximity Sensor Electrical Connection M12 Connector, Output Mode NO, IP Rating IP68, IP69K, Case Material Stainless Steel, Length 45 mm, Operating Temp. Range 0 Degrees to 100 Degrees C, Description/Special Features Gold Plated Contacts, Increased Sensing Range
