  6. Cylindrical, Inductive Proximity Sensor, 18 mm Dia., Brass, 2 m, Bare Wire, 3 Wires, Shielded

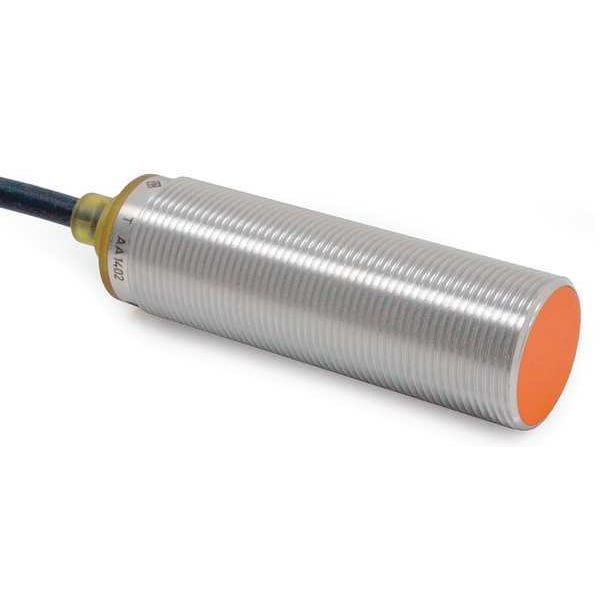

Ifm Cylindrical, Inductive Proximity Sensor, 18 mm Dia., Brass, 2 m, Bare Wire, 3 Wires, Shielded IGS246 - main

Cylindrical, Inductive Proximity Sensor, 18 mm Dia., Brass, 2 m, Bare Wire, 3 Wires, Shielded

  • Mfr # IGS246

  • Zoro # G0528075

product price:  $35.69
/ea

Key Features

Style
Inductive, Cylindrical
Overall Diameter
18 mm
Proximity Sensing Method
Inductive
Body Material
Brass
Proximity Sensor Power Requirement
10 to 30V DC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
IGS246
Zoro #
G0528075
UPC #
-
Country of Origin
Germany

Dimensions

Overall Diameter
18 mm
Cable Length
2 m
Length
60 mm
Overall Height
60 mm

Details

Item
Proximity Sensor
Style
Inductive, Cylindrical
Proximity Sensing Method
Inductive
Body Material
Brass
Proximity Sensor Power Requirement
10 to 30V DC
Electrical Connection
Bare Wire
Output Circuit Type
NPN
Output Circuit Number of Wires
3
Sensing Face Shielding
Shielded
Sensing Distance - Maximum
8 mm
AC Voltage Rating
Not Rated
DC Voltage Rating
10-30V DC
Output Circuit Contact Form
NO
Standards
EN 61000-4-2 ESD, EN 55011, EN 60068-2-14 Na, EN 60068-2-27, EN 60068-2-52 Kb, EN 60068-2-6 FC, EN 61000-4-3 HF Radiated, EN 61000-4-4 Burst, EN 61000-4-6 HF Conducted, UL E174191, UL A002
Proximity Sensor Electrical Connection
2m Cable
Proximity Sensor Operating Frequency
400 Hz
IP Rating
IP65, IP66, IP67, IP68, IP69K
Includes
(2) Lock Nuts
Max. Current Load
100mA
Description/Special Features
Overload And Short Protection
Operating Temp. Range
-40 Degrees to 185 Degrees F
Body Finish
Bronze Coated
Output Circuit Current - Maximum
100 mA
Features
Safe Detection
Output Circuit Voltage - Maximum
2.5 V DC
Switching Frequency
400 Hz
Includes Indicator Lights
Indicator Lights Included
Operating Temperature - Maximum
185 Degrees F
Electrical Installation Type
Prewired Cable
Operating Temperature - Minimum
-40 Degrees F

Description

Inductive Cylindrical Proximity Sensor, Inductive, 18 mm, Proximity Sensor Power Requirement 10 to 30V DC, Shielded, Proximity Sensor Operating Frequency 400 Hz, Proximity Sensor Output Circuit Type 3 Wire NPN, Max. Detecting Distance 8 mm, Proximity Sensor Electrical Connection 2m Cable, Output Mode NO, IP Rating IP65, IP66, IP67, IP68, IP69K, Case Material Brass White Bronze Coated, Length 60 mm, Operating Temp. Range -40 Degrees to 185 Degrees F, Max. Current Load 100mA
